New database with free layouts and track plans online

ModelRailroadForums.com is a free Model Railroad Discussion Forum and photo gallery. We cover all scales and sizes of model railroads. Whether you're a master model railroader or just getting started, you'll find something of interest here.


Mixy

Author of SCARM
Here is the new featured layout for January, which is already under construction:

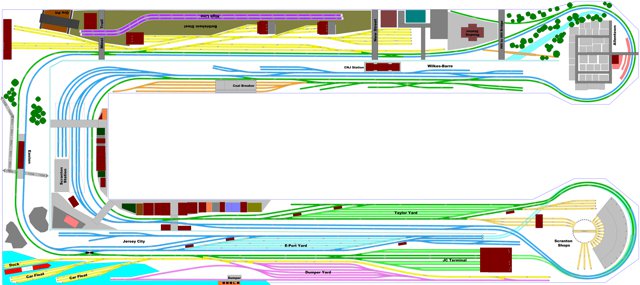

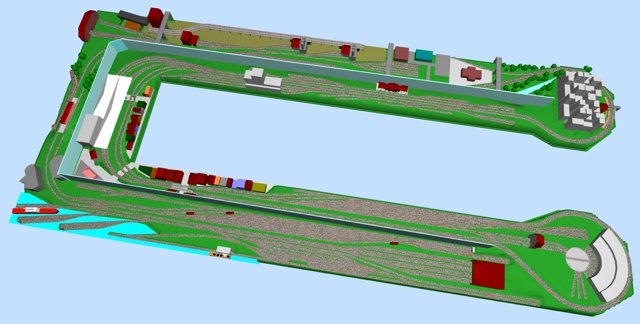

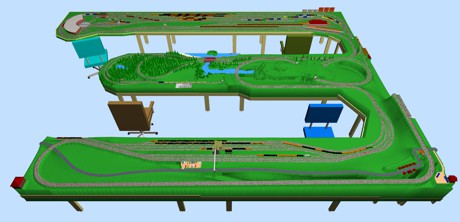

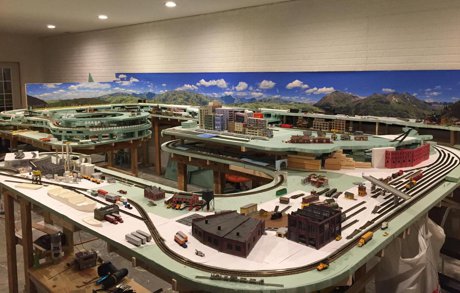

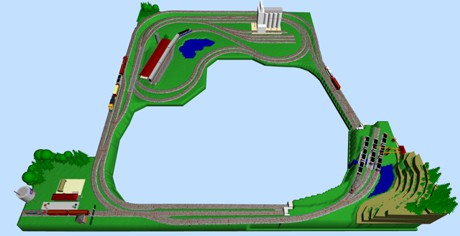

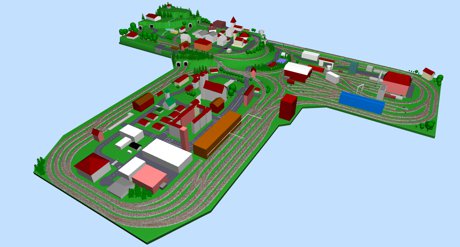

Garden State Central Model Railroad Club 25' x 50' Room Layout

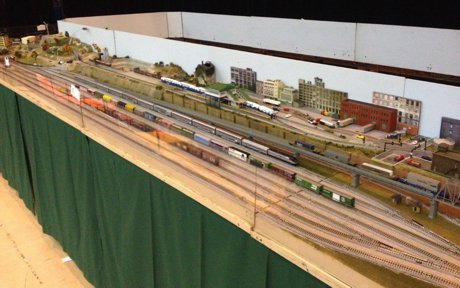

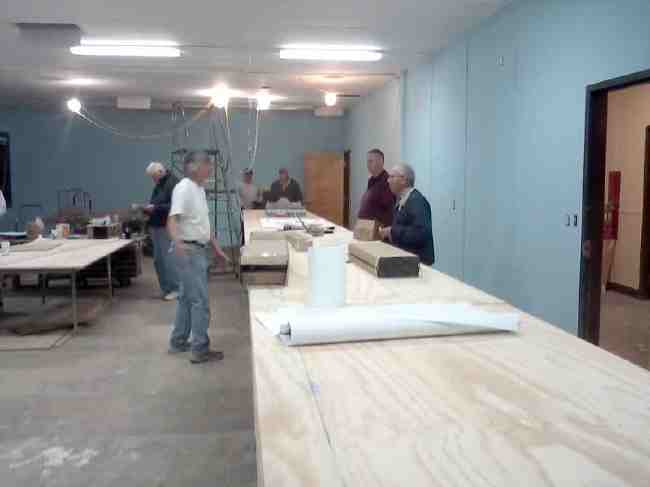

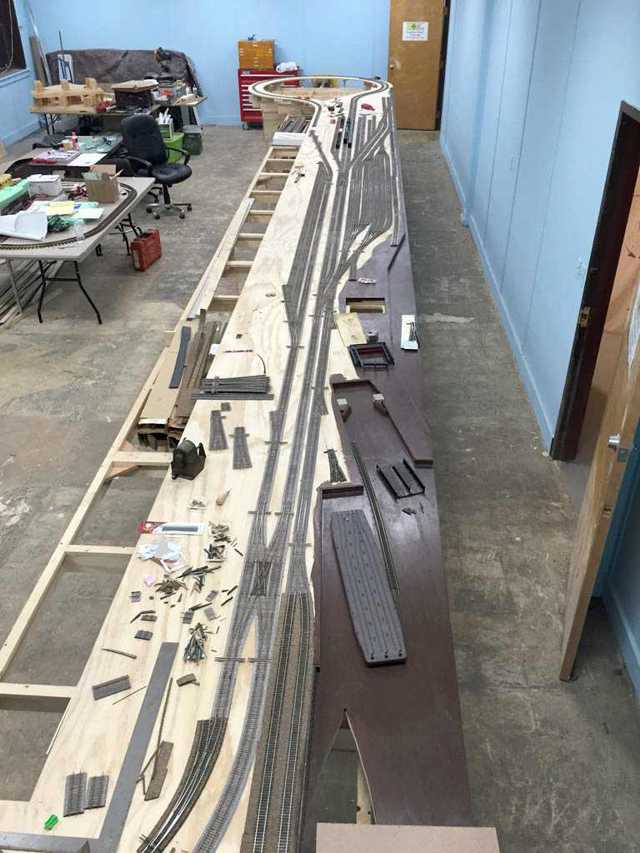

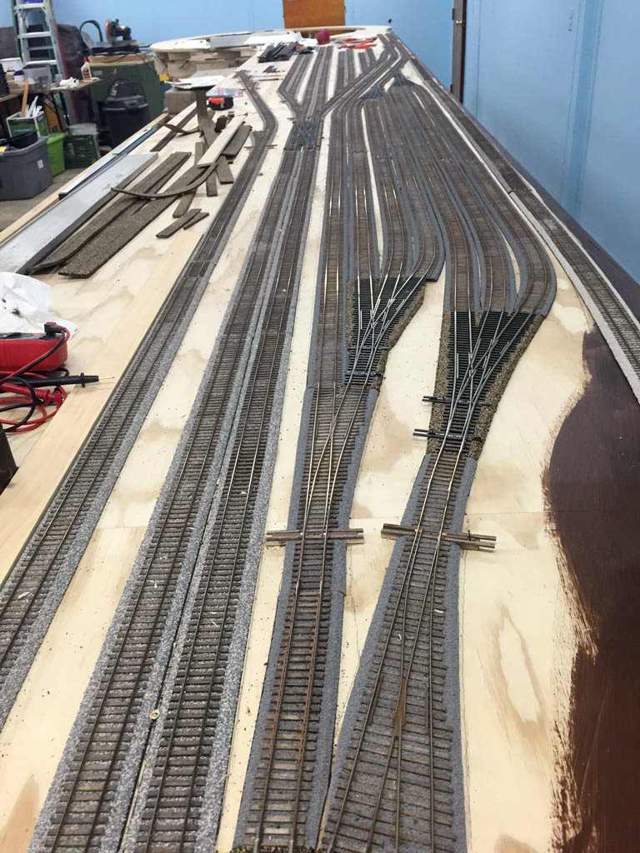

It is one of the largest and most complex track plans ever designed in SCARM which is now turning into a real layout by the guys in Garden State Central Model Railroad Club. See some pics from the building process:









Read more about that huge layout and download the SCARM track plan from the link above. Hope you will like it :)

Mixy


Mixy

Author of SCARM
The last published project shows one interesting idea: single track route for using with rolling stock in two scales - standard gauge N (1/160) and narrow gauge HOn30 (1/87).

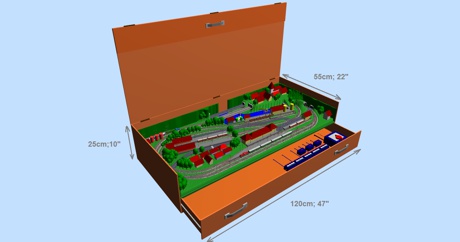

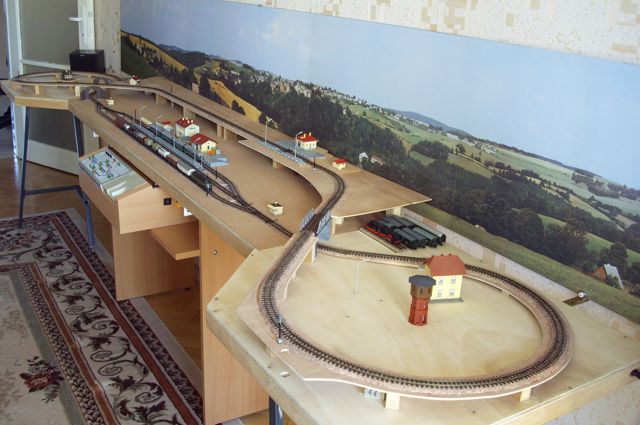

Small Folding Layout For Use in Both HOn30 and N scales



The track plan is designed as single line in “double 8” figure with one small station in front and train stop at the back. The layout is planned to allow exchanging of the buildings, signals and some other parts depending on the current rolling stock scale – N (1/160) or narrow gauge HOn30 (1/87). The guy who builds this layout has prepared different stations and surrounding buildings, different types of signals and different locos and coaches. Only the tracks and the grass will be the same in both scales. Check the link to see more pictures in the two different setups :)

Mixy

Last edited by a moderator:

Mixy

Author of SCARM
Two new N scale layouts were published in the site from the beginning of the year - see them below:

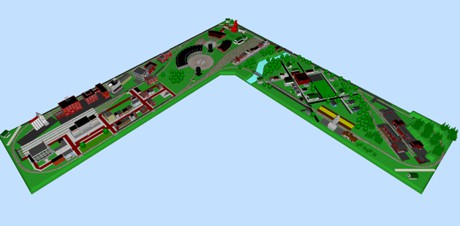

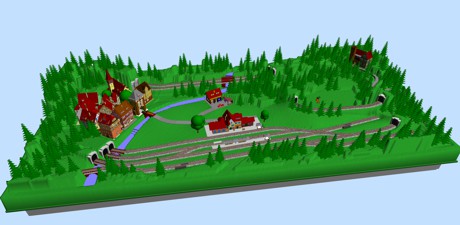

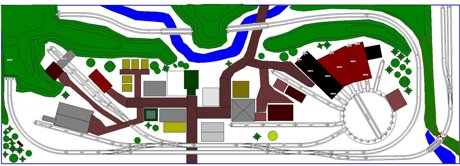

The Train Layout with The Old Castle

Nice layout with precise designed virtual buildings (all are from real kits) with many details and rich decorations.

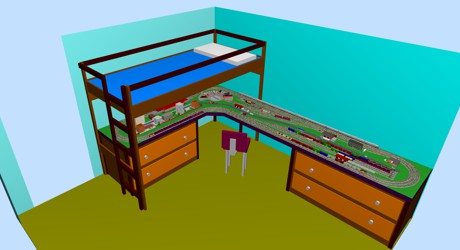

A Small Layout in the Kid's Room in N Scale

This project represents a whole room with bed on the upper level and all the furniture for L-shaped layout with buildings and rolling stock on it.




Hope you will like these layout projects :)

Mixy


Beady

Well-Known Member
Two new N scale layouts were published in the site from the beginning of the year - see them below:

The Train Layout with The Old Castle

Nice layout with precise designed virtual buildings (all are from real kits) with many details and rich decorations.




A Small Layout in the Kid's Room in N Scale

This project represents a whole room with bed on the upper level and all the furniture for L-shaped layout with buildings and rolling stock on it.




Hope you will like these layout projects :)

Mixy
How does Mom change the sheets on the bed?

Sent from my SAMSUNG-SGH-I337 using Tapatalk


Mixy

Author of SCARM
Here are shown three more layouts in HO (1/87), TT (1/120) and N (1/160) scales, all in oval form:

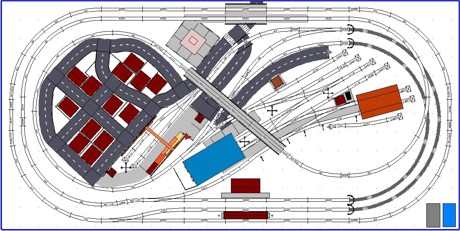

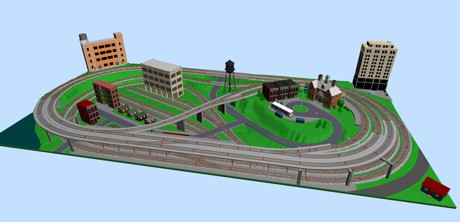

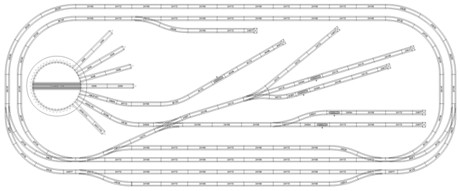

Compact HO Track Plan feat. Figure "8"



The plan above has one internal loop with one entry point, but can be easily modified in 2 different ways in order to get one more entry/exit point. The modifications are described in the article.

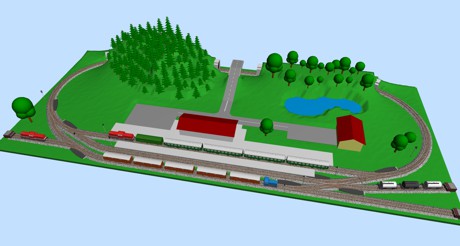

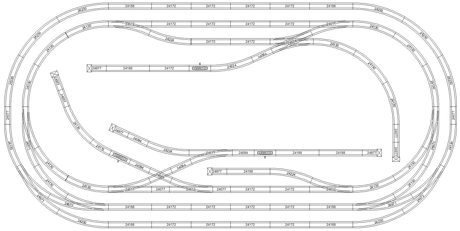

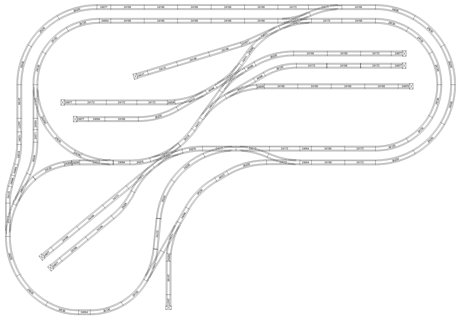

Compact Oval in TT scale



This design is just a simple oval with small train station in the center.

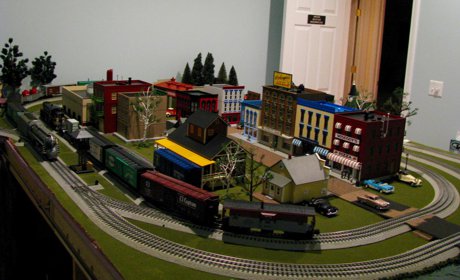

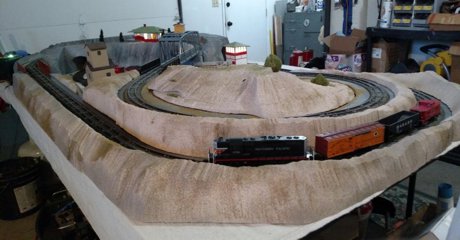

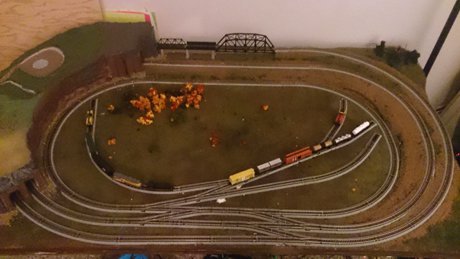

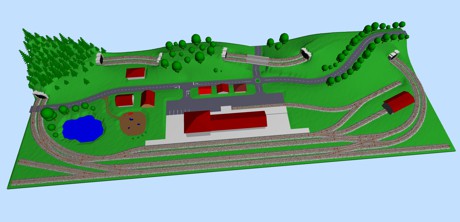

THE EYE - 3' x 5' N-scale Layout of Brian



This is one already build layout for simultaneously running of up to 3 trains


Mixy


Olie

Active Member
Man, these layouts are amazing. Question, every time I go to the scarm web page to download, the "File" always says N/A. Am I doing something wrong?


Olie

Active Member
If all plans shows 'N/A' in the Download section, try to white list www.scarm.info website in your AdBlock-er or use another browser.
You da man! Although, you did interrupt me while I was purchasing a licensing key. Saw the email pop up and like any typical old guy "squirrel" I had to come see the reply. Now where's my credit card........
