Traincontroller 10 Gold 13 Simplified Speed Profile.

We want our trains to have accurate stop positions in the blocks, and to drive around with visually pleasing accelerations and decelerations. To accomplish this we have to calibrate the loc in Traincontroller. In many cases the Simplified Speed Profile works fine. It uses three sliders, min speed, max speed and 40 km/hr. To work well with TC first we have to program the DCC decoder in the loc.

Link to video Traincontroller 10 Gold 13 Simplified Speed Profile



[RudyB]

Traincontroller 10 Gold 14 Request Yellow.

Instead of limiting the max speed in a block, which influences all trains that drive through the block, 'Request Yellow' is an alternative method to slow down trains in the block before a scheduled stop. If we place this request yellow in blocks that belong to the schedule, it won't influence trains on other schedules; these can drive through the block at a higher speed.

Link to video Traincontroller 10 Gold 14 Request Yellow



[RudyB]

Traincontroller 10 Gold 15 Pushbuttons and Switches.

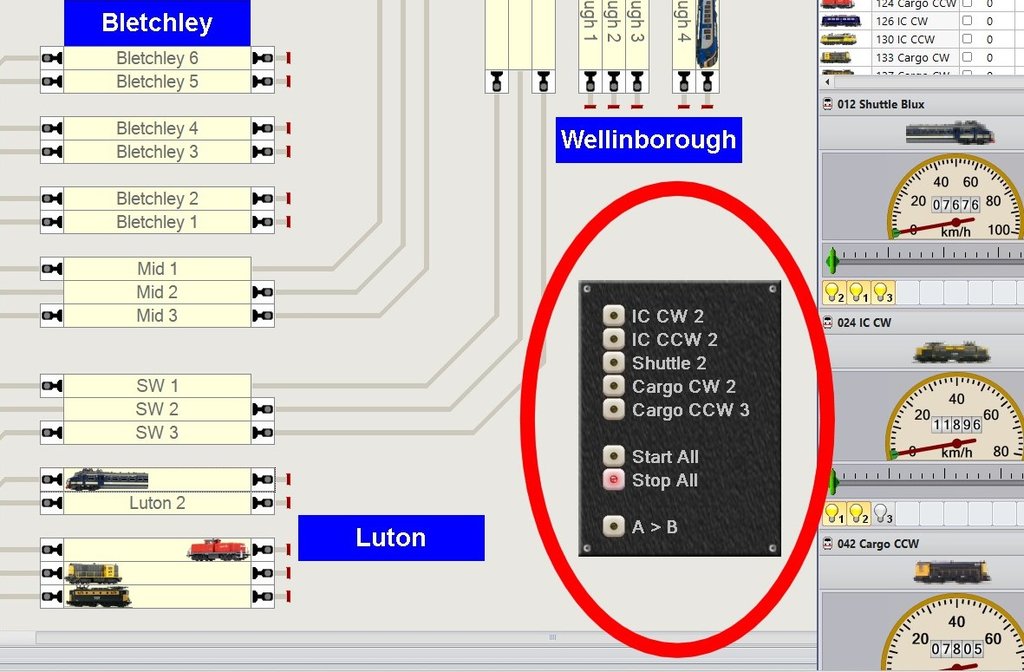

Pushbuttons and switches can be added to a Switchboard to control many different kinds of operations. This video shows how a Schedule can be started such that trains start to drive when a switch is flipped.

Link to video Traincontroller 10 Gold 15 Pushbuttons and Switches



[RudyB]

Traincontroller 10 Gold 16 How to Stop Trains.

Trains that drive on a cycle- or shuttle schedule with repeat count 0, as well as trains on schedules with successors,
will keep driving indefinitely. There are multiple options to stop the trains.

Immediate stops:

• The Freeze button (Esc on the keyboard) stops the trains, but keeps the schedules in the list. Power On (Ctrl Shift P) will start the trains again, exactly where you left off. Perfect for a coffee break, or as an emergency stop when something unexpected happened.
• Stop Layout (Ctrl Shift O) stops the trains, removes the schedules from the list and switches the track power off.
• Terminate all Schedules stops the trains, removes the schedules from the list. Track power stays on.
• Terminate Schedule stops the selected train / schedule and removes it from the list.

All the above methods stop the trains immediately. They may have come to a halt on a turnout, which makes these methods not preferred for neatly ending a driving session. If the next session TC decides to start a train on another schedule, a turnout may switch while a train is on it, which will lead to problems.

The following methods lead to a controlled stop:

• Lock all Blocks makes the trains stop at the stop marker of the block that has last been reserved by the train. The schedules stay in the list. To start driving again, toggle Lock all Blocks off again.
• Lock all Schedules makes the trains stop at the stop marker of the end block of the schedule and it takes the schedules out of the list.

These controlled stops are the safe ways to end a session.

To use the on/off switch that we created to start the schedules we place the ‘on’ state of the switch in the Condition tab of the schedule. If the switch is off, this condition is not met, which means the schedule will not be restarted once the train reaches the end block of the schedule.

Link to video Traincontroller 10 Gold 16 How to Stop Trains.



[RudyB]

Traincontroller 10 Gold 17 Signals.

The easiest way to control signals is to give the signal inside the block a DCC address. These signals now follow the block signal colors.

If you desire different switching logic for your signals, you will have to place separate signals on the switch panel (they can be placed on the track), give them a DCC address and specify a logic function for each aspect of the signal.

Link to video Traincontroller 10 Gold 17 Signals.



[RudyB]

Traincontroller 10 Gold 18 Send Trains to Specific Tracks

If a schedule has multiple destination blocks, like say a multi-track station or yard, a block gets chosen randomly.

There are a few ways to change this randomness and send trains to specific blocks:
- Use train lengths and allow trains only into blocks in which they fit (Schedule Rules)
- Allow only specific trains in a block (Block Properties, Trains tab)
- Send the first train to block 1, the next to block 2, and so on. (Block Properties, Condition tab)

Link to video Traincontroller 10 Gold 18 Send Trains to Specific Tracks



[RudyB]

Traincontroller 10 Gold 19 Level Crossing

TC has a “crossing gate” function. The gate closes when the route on which the crossing is placed is reserved, it opens again when the route is free.

In case this route triggering for the gate is too soon or too late we can build our own level crossing, where we can use physical sensors or action markers coupled to already existing block sensors. This also has the benefit that the crossing also works if we manually control trains, in which case routes are not reserved.

Link to video Traincontroller 10 Gold 19 Level Crossing
