OleSmokey

Active Member

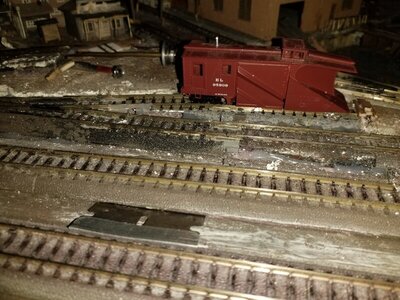

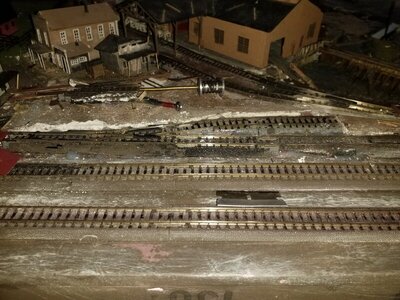

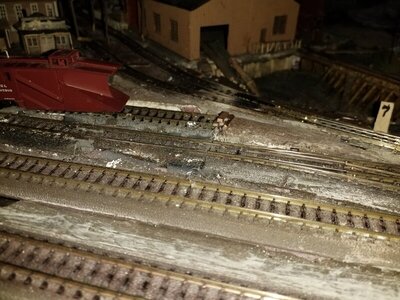

Since i used that stub siding for the engine house i made another stub siding. There was just enough room for it. Nice place for the snow plow.


Attachments

  • rsz_20210917_162329.jpg
    152.6 KB · Views: 18
  • rsz_20210917_162939.jpg
    138.6 KB · Views: 19
  • rsz_20210917_163050.jpg
    145.2 KB · Views: 16

OleSmokey

Active Member
One of the things in my last few layouts was the tunnels. So much of the views of the trains is lost to tunnels on this layout. The logging camp and track to and from it are fine. Its the main line that bugs me. I am still wondering what i can do to allow less tunnels. I am thinking of leaving most of the tunnel where the town is, But opening up the whole side of the logging camp. That means loosing the mountain on the left. Make like a island for the logging camp on the left and allowing the main line to be out on the views. That would let me see around 60% of the main line. Not sure on this yet, But was one of my main issues with tunnels. Real lines back in the day didn't have very big tunnels. Once the track is past the town i am trying a way yo open the main and allow the logging camp line have a bridge that can go over the main. Opening that up as well so not as much tunnel on the town side. Now that is going to be my next part of the layout and will be leaving the yard intact so don't really need much track changes but for the line heading up to the logging camp. Will see how this works out. This will be a new layout idea so its to be made layout #6. Its my 6th layout with the same sawmill and logging camp along with the same name. More t be shown later.


OleSmokey

Active Member

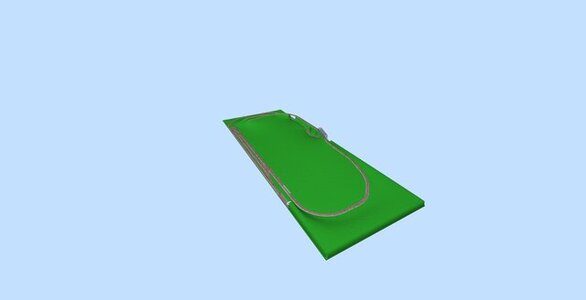

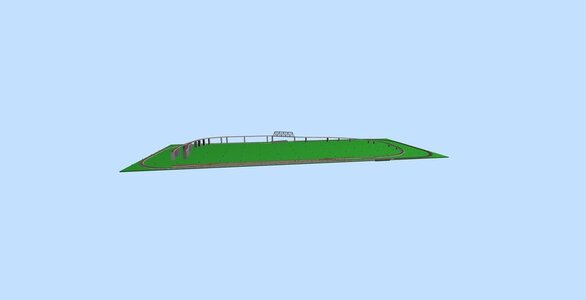

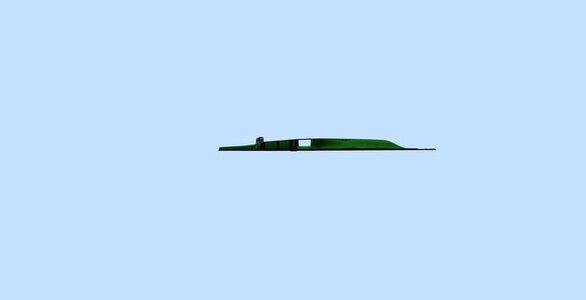

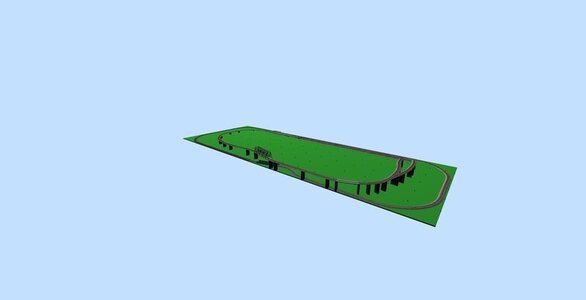

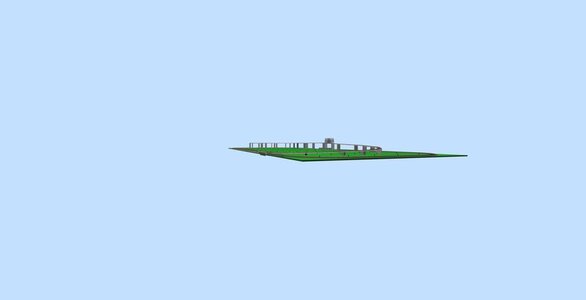

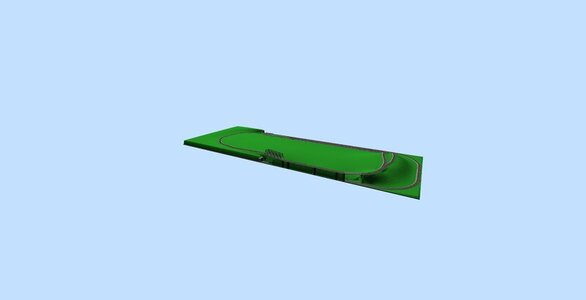

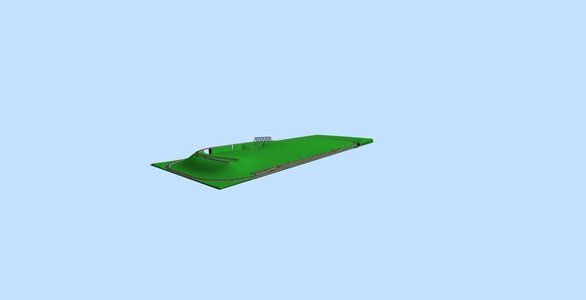

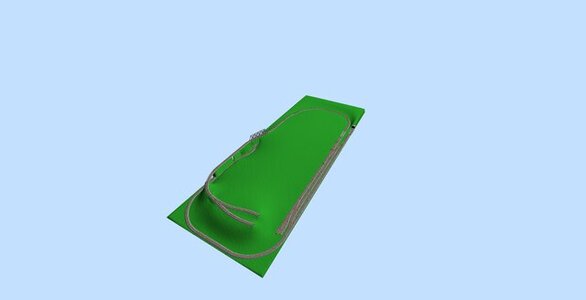

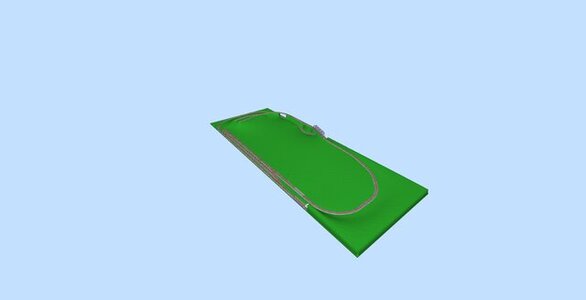

Here is one plan i like! It don't require much major changes on the right side of the layout. Here is the snapshots from Scarm.


Attachments

  • rsz_snapshot.jpg
    8.2 KB · Views: 15
  • rsz_snapshot2.jpg
    9.3 KB · Views: 15
  • rsz_snapshot3.jpg
    5.4 KB · Views: 13
  • rsz_snapshot4.jpg
    6.7 KB · Views: 14
  • rsz_snapshot5.jpg
    8.3 KB · Views: 15
  • rsz_snapshot6.jpg
    10.6 KB · Views: 12
  • rsz_snapshot7.jpg
    10.8 KB · Views: 13
  • rsz_snapshot8.jpg
    12.7 KB · Views: 10
  • rsz_snapshot9.jpg
    8.7 KB · Views: 13
  • rsz_img09262021_011.jpg
    38.3 KB · Views: 12

OleSmokey

Active Member

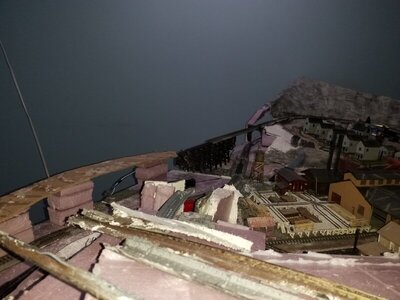

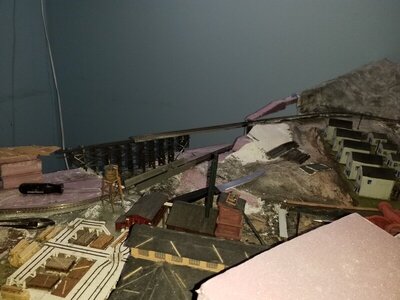

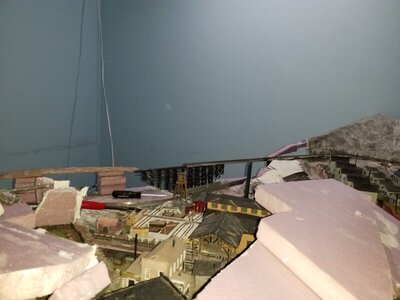

Deconstruction or construction?


Attachments

  • rsz_20210926_205142.jpg
    81.3 KB · Views: 10
  • rsz_20210926_205932.jpg
    105.5 KB · Views: 10
  • rsz_20210926_205943.jpg
    92.1 KB · Views: 11

OleSmokey

Active Member

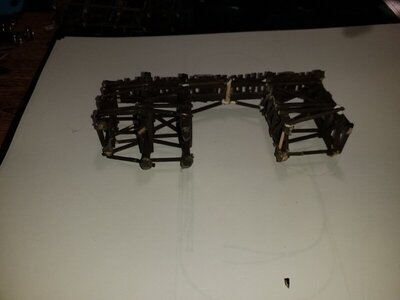

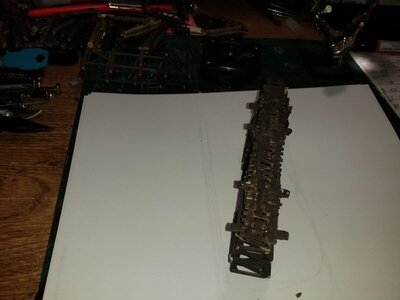

I have two trestles on this layout now. This is one that i had left over from layout #4. I modified it to work on this layout. I am getting my wood for the big trestle on the river. this one is just over the main. Shots below.


Attachments

  • rsz_20210929_131611.jpg
    52.9 KB · Views: 11
  • rsz_20210929_131622.jpg
    61.3 KB · Views: 9
  • rsz_20210929_131635.jpg
    65.2 KB · Views: 9

OleSmokey

Active Member

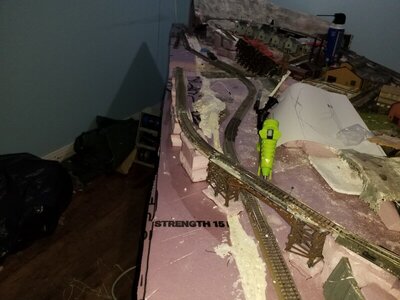

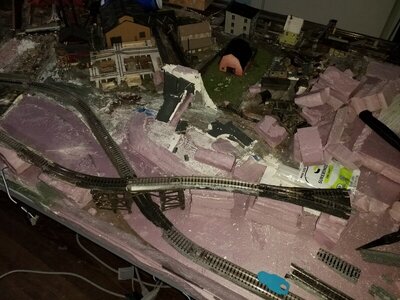

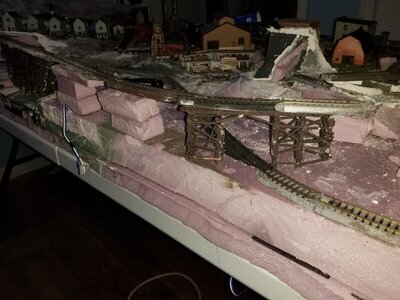

A quick shot of the fun. Am not sure if it will need changing a bit more. Its rough. That little trestle needs to be around 1 1/2 inch longer. No big deal. I will be adding 8 inches to the big trestle. Still looking at the logging camp. Not sure about it yet. Some shots below. Sorry about the mess. Using the smaller pieces to support the logging camp and the track.


Attachments

  • rsz_20210926_205932.jpg
    105.5 KB · Views: 14
  • rsz_20210929_183934.jpg
    119.3 KB · Views: 11
  • rsz_20210929_183959.jpg
    79.8 KB · Views: 13
  • rsz_20210929_185125.jpg
    143 KB · Views: 12

OleSmokey

Active Member

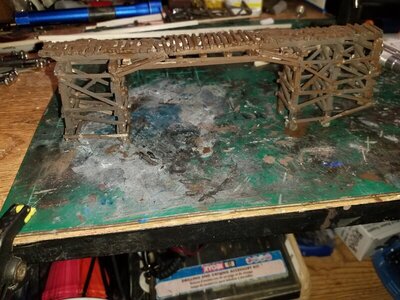

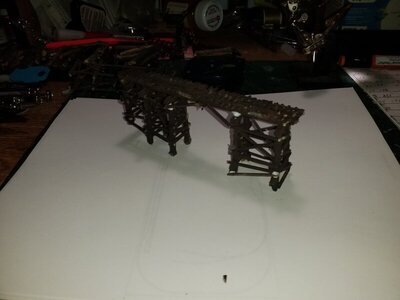

Have a couple of pictures of the trestle over for the logging camp area. Its two inches longer and waiting till the paint dries to put it on the track


Attachments

  • rsz_20211003_142905.jpg
    136.2 KB · Views: 12
  • rsz_20211003_142924.jpg
    142.8 KB · Views: 11
  • rsz_20211003_165328.jpg
    146 KB · Views: 15
  • rsz_120211003_165336.jpg
    280.9 KB · Views: 11

OleSmokey

Active Member
I can't figure out how i want the back side. Also i will need a small hill for gaining access to trees. So, I need to figure out how i want it to go. Will let you know when i figure it out.


OleSmokey

Active Member
Well, I found out i screwed up with size of layout board. I made it 32 inches...go figure. I am going to add the othr 4 inches to it and that will really help out the back of the layout. More later.


OleSmokey

Active Member

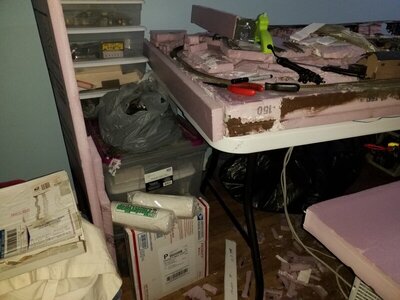

Heres the good bad and ugly of this mess! Final size will be 97X36 inches


Attachments

  • rsz_20211006_202307.jpg
    82.4 KB · Views: 11
  • rsz_20211006_202312.jpg
    100.9 KB · Views: 11
  • rsz_20211006_202320.jpg
    109.7 KB · Views: 11

OleSmokey

Active Member

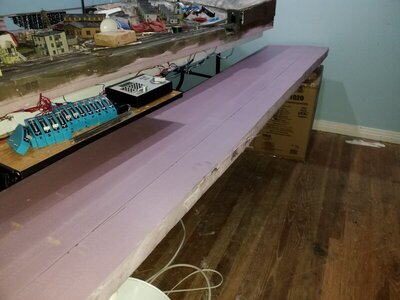

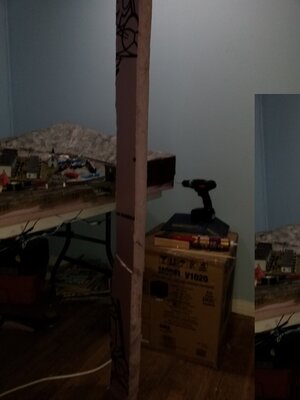

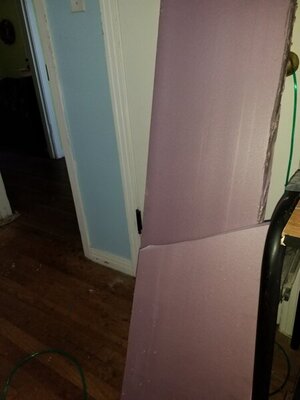

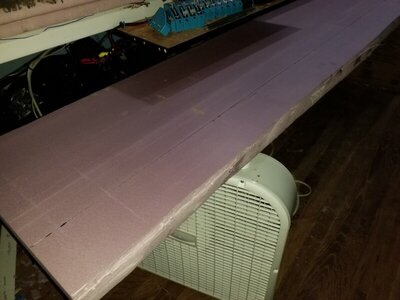

I was cutting the piece of 2 inch foam and it found a wea spot where i didn't have cut it deep enough and the whole board cracked across the board. I have two pieces of the 4 inch board for the back of the layout. Its drying. i also have the 1 inch piece finished and drying. Lets see now if the scarm program will work now. I have some shots but have to resize them first. Laters


OleSmokey

Active Member
Here are the shots of this mess. That 1 by 3 is installed and glued on


Attachments

  • rsz_20211008_130024.jpg
    75.9 KB · Views: 10
  • rsz_20211008_130043.jpg
    44.6 KB · Views: 10
  • rsz_20211008_161123.jpg
    95.3 KB · Views: 12

OleSmokey

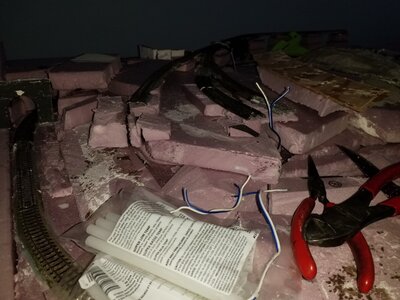

Active Member

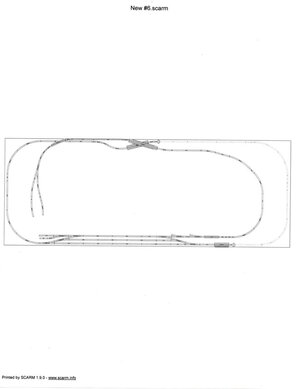

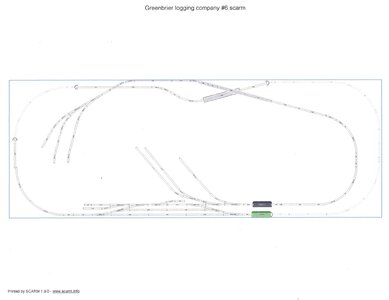

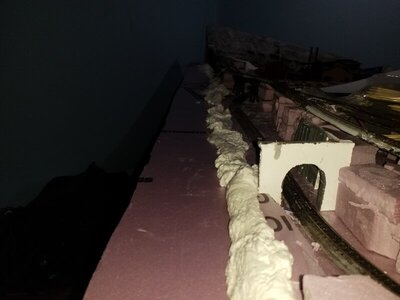

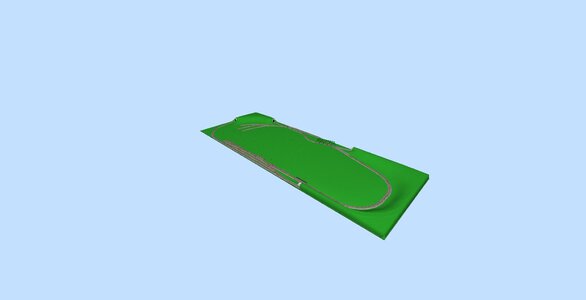

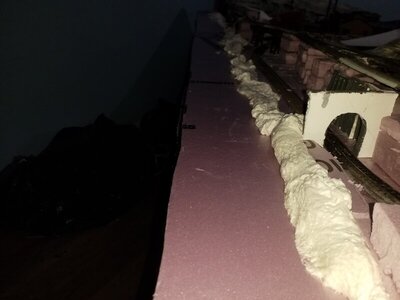

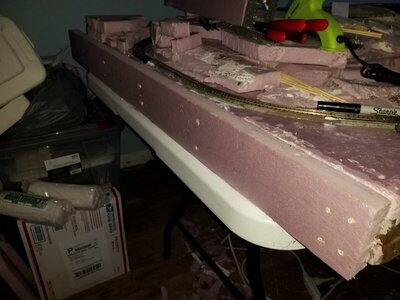

I got the foam board in place i used skewers to get it where need it and am using expanded foam to put it together. I couldn't sleep well last night and was working on a layout plan with scarm. I got it the way i want it and after printing all the sheets up i laid it all down and it fits. Finally!! Have a couple of shots below. Laters!!


Attachments

  • img20211010_12224597.jpg
    111.9 KB · Views: 12
  • snapshot.jpg
    42 KB · Views: 10

OleSmokey

Active Member
They be foam here!!


Attachments

  • rsz_20211011_164457.jpg
    64.9 KB · Views: 7
  • rsz_20211011_164535.jpg
    67.3 KB · Views: 7

OleSmokey

Active Member

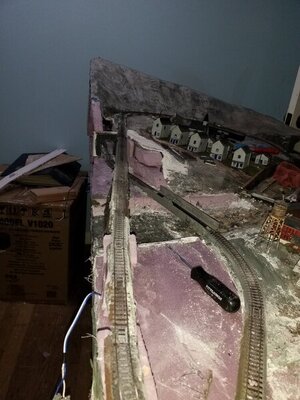

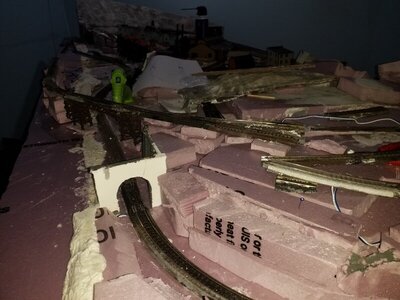

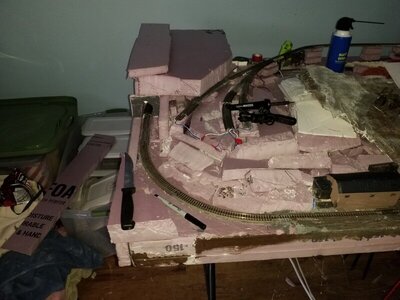

Heres the fun starting. Cutting the excess foam for track and rock formations Some shots below


Attachments

  • rsz_20211012_190528.jpg
    100.7 KB · Views: 11
  • rsz_20211012_190536.jpg
    107.3 KB · Views: 13
  • rsz_20211012_190613.jpg
    95.5 KB · Views: 10

Rico

BN Modeller
Coming along nicely Mr. Smoke!
Love the branch line up the hill, guessing they push the cars up?


OleSmokey

Active Member

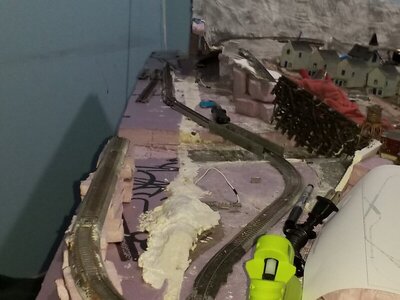

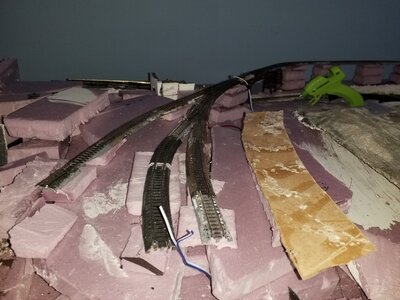

Taking my time. I just don't fill right. The weather is most of it. Sinus is the rest. Both are affecting my sleep. I have finished how the logging yard will be laid out Ready for another set of wires for the one turnout on the logging camp. Also are ready to wire for power to track. Its been working with the Scarm plan. I am going to tear out the mountain on the right side back. The track is going to be going back more. Doing that will help for the trestle across the river and add a place for the tunnel and that way they will cross over each other. Some shots of the logging track placement.


Attachments

  • 20211014_130104.jpg
    427 KB · Views: 7
  • 20211014_130113.jpg
    433.7 KB · Views: 6
  • 20211014_130129.jpg
    375.4 KB · Views: 6

OleSmokey

Active Member

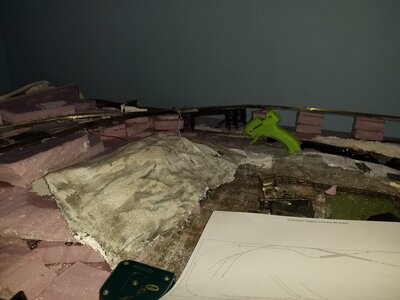

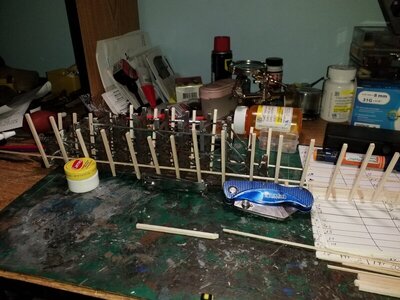

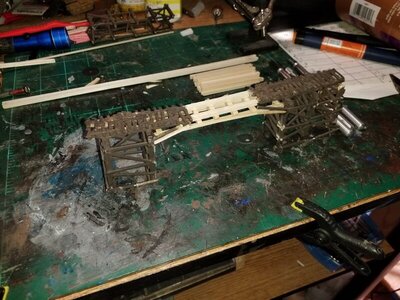

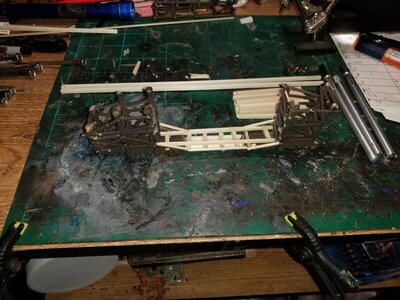

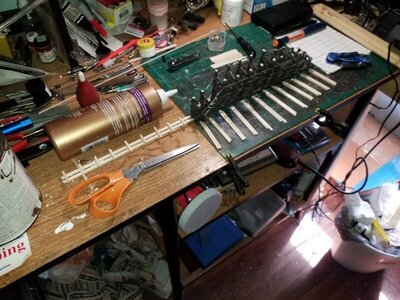

A couple of shots of the new mountain and building the new trestle. The new mountain will be removable. More later


Attachments

  • rsz_20211018_122602.jpg
    144.7 KB · Views: 4
  • rsz_20211018_122611.jpg
    104.7 KB · Views: 4

OleSmokey

Active Member
Just a bit more. I screwed up on one side. I mirrored Both sides to just one side. So i had to tear one side and redo it. Its drying now. I am getting to old for this stuff. I keep making mistakes all the time.


Attachments

  • rsz_20211019_142908.jpg
    134.7 KB · Views: 3
