Recommended Method for Weathering Kato Viaduct

ModelRailroadForums.com is a free Model Railroad Discussion Forum and photo gallery. We cover all scales and sizes of model railroads. Whether you're a master model railroader or just getting started, you'll find something of interest here.


GuilfordRailman

Well-Known Member

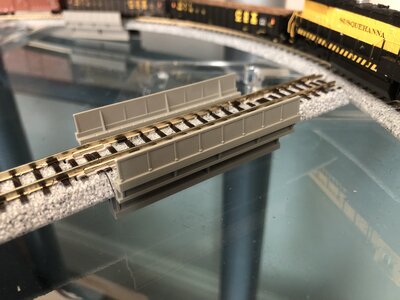

Before I adhere the track to my new micro layout, I want to weather the two small viaducts I have as part of the track plan. Any recommendations on the best method to do this?


Attachments

  • 2562D660-2480-47D7-A07D-7AA01CBF7576.jpeg
    409.2 KB · Views: 32

Selector

Well-Known Member
These are through girder bridges. A viaduct is suspended roadbed held at grade by a masonry and/or stone arch structure. The girders would be painted black, and over time the fillets, flanges, and rivets would develop rusted sections and streaks below them. The bottom flange would be dirty and heavily rusted.

index.php


GuilfordRailman

Well-Known Member
These are through girder bridges. A viaduct is suspended roadbed held at grade by a masonry and/or stone arch structure. The girders would be painted black, and over time the fillets, flanges, and rivets would develop rusted sections and streaks below them. The bottom flange would be dirty and heavily rusted.

index.php
Ahh okay. I was just going with what it said on the Kato package (2 7/16” straight viaduct).

Good reference pic! Any recommendations for weathering supplies? I was planning on using just black spray paint and weathering with acrylic paints to simulate the rust.

Last edited:

Selector

Well-Known Member
I used Floquil 'rust' on rails, but that brand is gone. For any tinting, painting, and weathering, I just fudge something passable out of the Plaid Craft acrylic paints available cheaply at Wally's. A single drop of red, half a drop of yellow, and maybe some Burnt Umber, just a half smidge, and dilute that in about 1 tbsp of water. Then, with a barely wet small brush, and a steady hand, start swiping the sides of the braces and the edges of the flanges. Don't overdo it, let each coat dry thoroughly, and then re-apply if it's too thin.

Last edited:

GuilfordRailman

Well-Known Member
I used Floquil 'rust' on rails, but that brand is gone. For any tinting, painting, and weathering, I just fudge something passable out of the Plaid Craft acrylic paints available cheaply at Wally's. A single drop of red, half a drop of yellow, and maybe some Burnt Umber, just a half smidge, and dilute that in about 1 tbsp of water. Then, with a barely west small brush, and a steady hand, start swiping the sides of the braces and the edges of the flanges. Don't overdo it, let each coat dry thoroughly, and then re-apply if it's too thin.
I’ll give it a shot, thanks!
