Unlocking the Proto 1000 DL109 Trucks

ModelRailroadForums.com is a free Model Railroad Discussion Forum and photo gallery. We cover all scales and sizes of model railroads. Whether you're a master model railroader or just getting started, you'll find something of interest here.


beiland

Well-Known Member
I have a number of these HO DL109 engines and have never taken the trucks apart to inspect them for gear lubricant, nor electrical contacts.
Can someone tell me how to gain access without over stressing any of the plastic covers, snaps, etc. ??


beiland

Well-Known Member
I finally got the bottom 'panel' off by a combination of simultaneous actions,...seems as though the 'clamping ends' of that bottom panel need to pulled out of the sideframes , then lifted up while prying the sideframes out from the body.

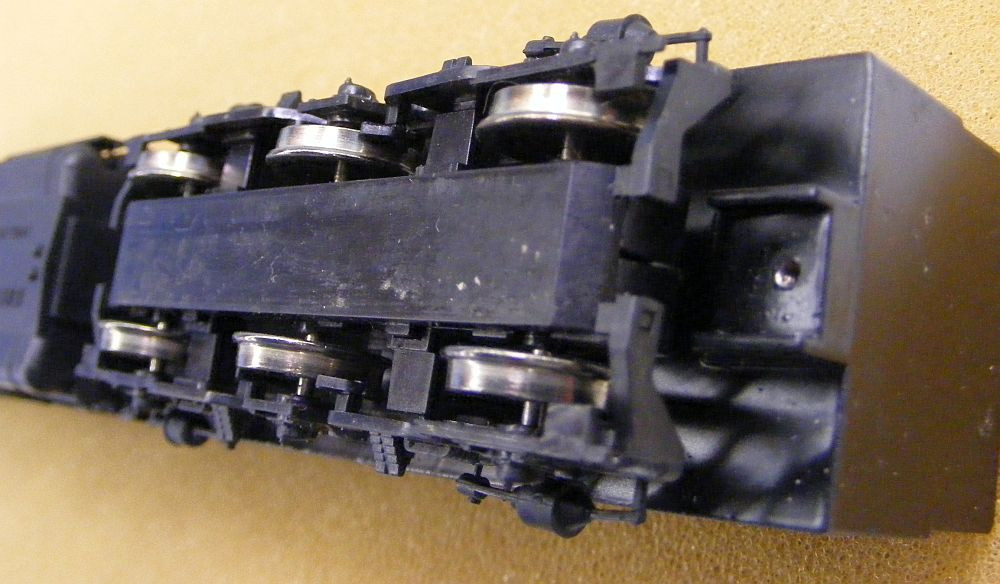

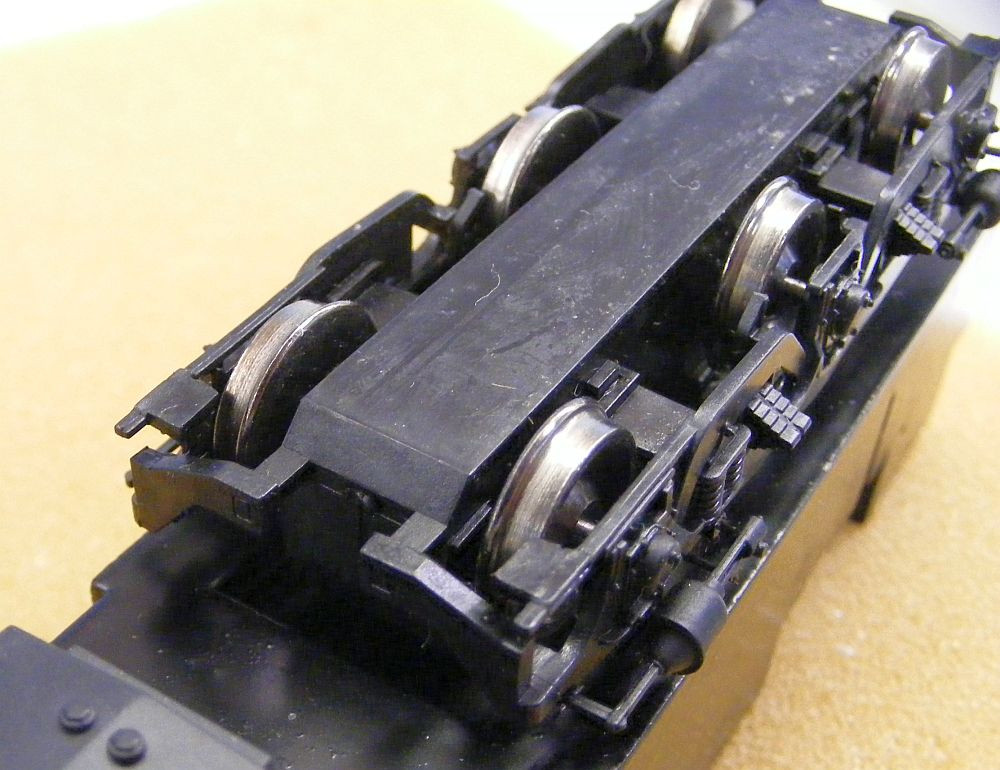

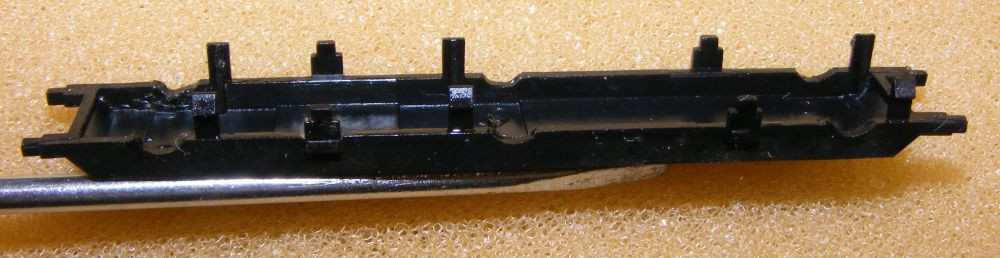

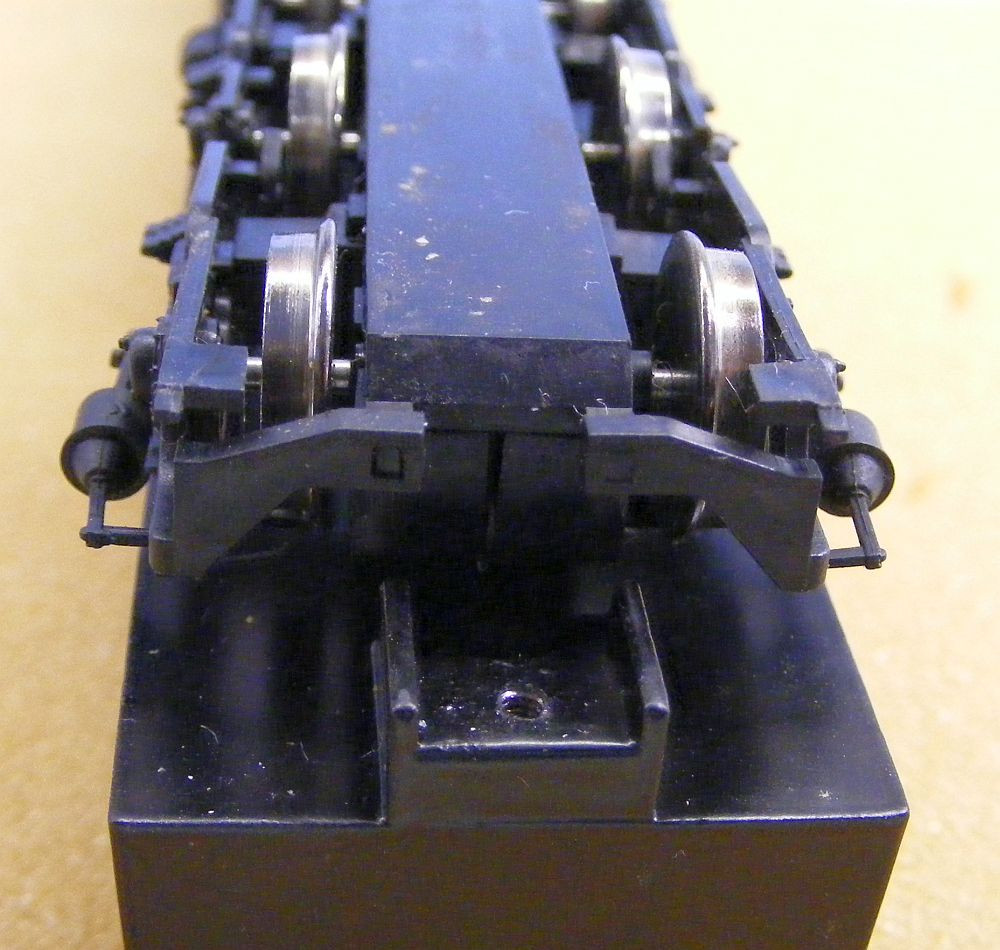

Here are some photos,..
DSCF8772.jpg DSCF8773.jpg DSCF8774.jpg DSCF8778.jpg DSCF8779.jpg

I did not notice excessive lubrication in there.

I do believe it would probably be a good idea to solder those connecting wires on the metal plates,

And I think it might be a good idea to run a pencil around in each of those axle holes to apply a little carbon?
