Sears Roebuck #9757 Locomotive Repair

ModelRailroadForums.com is a free Model Railroad Discussion Forum and photo gallery. We cover all scales and sizes of model railroads. Online since 2002, it's one of the oldest and largest model railroad forums on the web. Whether you're a master model railroader or just getting started, you'll find something of interest here.


North1941

New Member
Hello,

I have a Sears Roebuck #9757 Locomotive that I was cleaning and a small spring popped out that I am unsure from where. :/

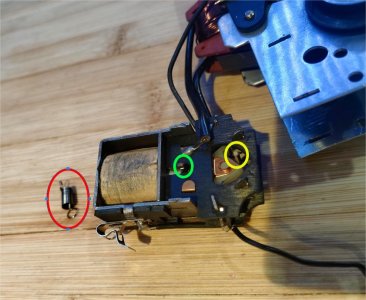

Have been trying with no luck to find a schematic. It came out from the front transformer section and I think it connects to one of the poles in Green or Yellow, but then I am unsure.

This is a personal family set that I'd like to see running again.

I appreciate any help.


Attachments

  • PrtScr capture.jpg
    PrtScr capture.jpg
    133.5 KB · Views: 63
  • IMG_20241206_095647.jpg
    286.3 KB · Views: 65
  • IMG_20241206_095637.jpg
    488.9 KB · Views: 64

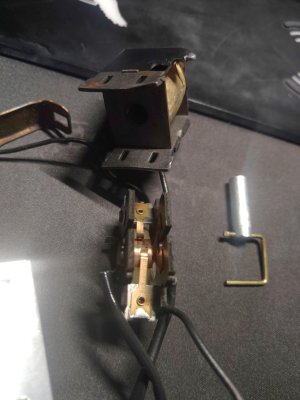

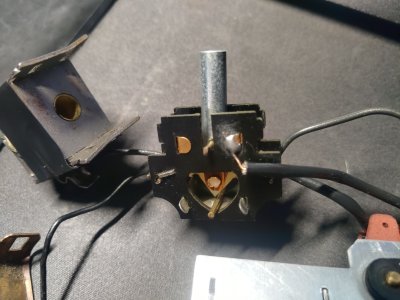

Inside of the contacts.


Attachments

  • IMG_20241206_155253.jpg
    431.1 KB · Views: 53
  • IMG_20241206_155354.jpg
    364.4 KB · Views: 48
I think what you have is a set made by Louis Marx and Co. for Sears.

Can you post more photos? The set box would be great or the locomotive shell and the cars that came with it.

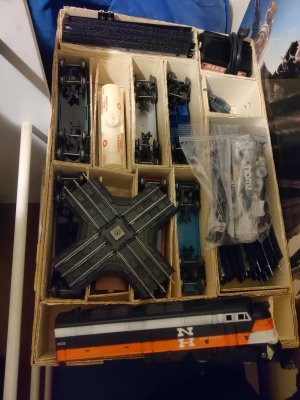

From what information I have got from others so far, sounds like the spring may have been an official aftermarket Grandpa part to keep the locomotive locked into a single direction.



Attachments

  • IMG_20241206_201538.jpg
    456.7 KB · Views: 60
  • Like
Reactions: Dub
From what information I have got from others so far, sounds like the spring may have been an official aftermarket Grandpa part to keep the locomotive locked into a single direction.
That is plausible. Have you tried running the locomotive without the spring?

For the record this was made by Marx. You can see the couplers from the open box picture. A very nice set.

This diagram shows how it all works. The frame is grounded to the outer rails.

There are three connections on the wedge. My initial diagram had four which was incorrect.
The Top is representative of the motor field coil. The right is the armature and brush arrangement,
The bottom shows the reverse unit coil.
The star shows the location of a switch to lock out the wedge position.
