request for photos of blomberg trucks

[AJMX-Railroad]

hello, I need a photo of the inside of an emd Blomberg truck specifically the thing that holds the brake shoe,
anyway, I have been struggling with the trucks because I can't find any good reference photos send me some good shots please



[rgeiter]

So your looking for a top down photo?



[Iron Horseman]

Blomberg trucks come in two major flavors the "B" as given in the prior post and also a later model "M".

here is a write up on the trucks they call "GP" trucks



[AJMX-Railroad]

hmm I think I am looking for the b version

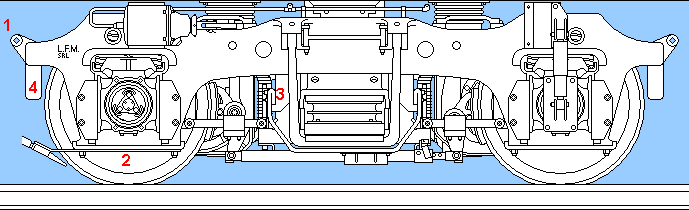

oh and I did find those drawings before and I am looking for the... hmm see that photo I need to know the shape of them things behind the frame



[rgeiter]

hmm I think I am looking for the b version
oh and I did find those drawings before and I am looking for the... hmm see that photo I need to know the shape of them things behind the frameView attachment 126766

Refine your search to Blomberg locomotive truck brake block or brake block linkage.

The air brake systems that I use to work on were much older, so this “newer” stuff is something I never messed with.



[AJMX-Railroad]

nope I didn't get any results (well I did but not the part of the truck I am looking for)
)‍‍:



[AJMX-Railroad]

well I found this, it's a video about rebuilding a gp9 and in part of THE 40 MINUTES they show the trucks you can see it here
still not quite what I'm looking for but it's great



[AJMX-Railroad]

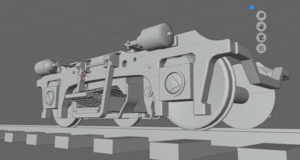

ok... I made a 3d model of the truck. it took me 2 days, but it's now almost done. If you want detailed photos email me and tell me what you want.
I have a few photos though, it is made in blender



[AJMX-Railroad]

ok so it's been a while but I have found a great photo of the "brake hangers" for these trucks the one on the left is the type used for the main inside brakes
