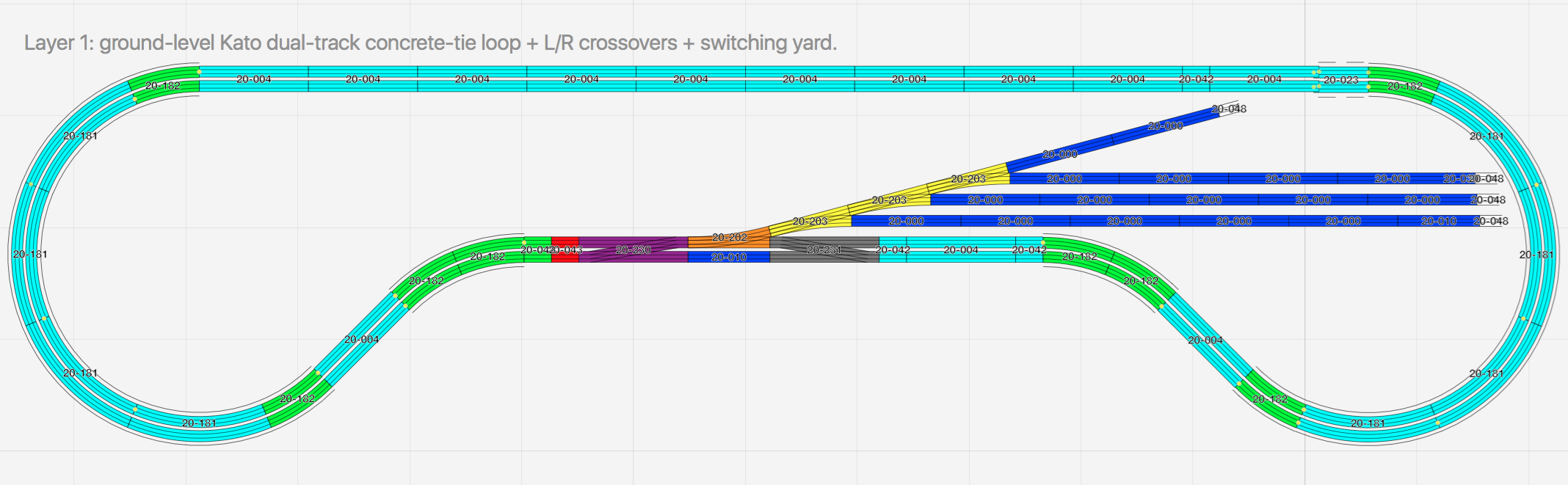

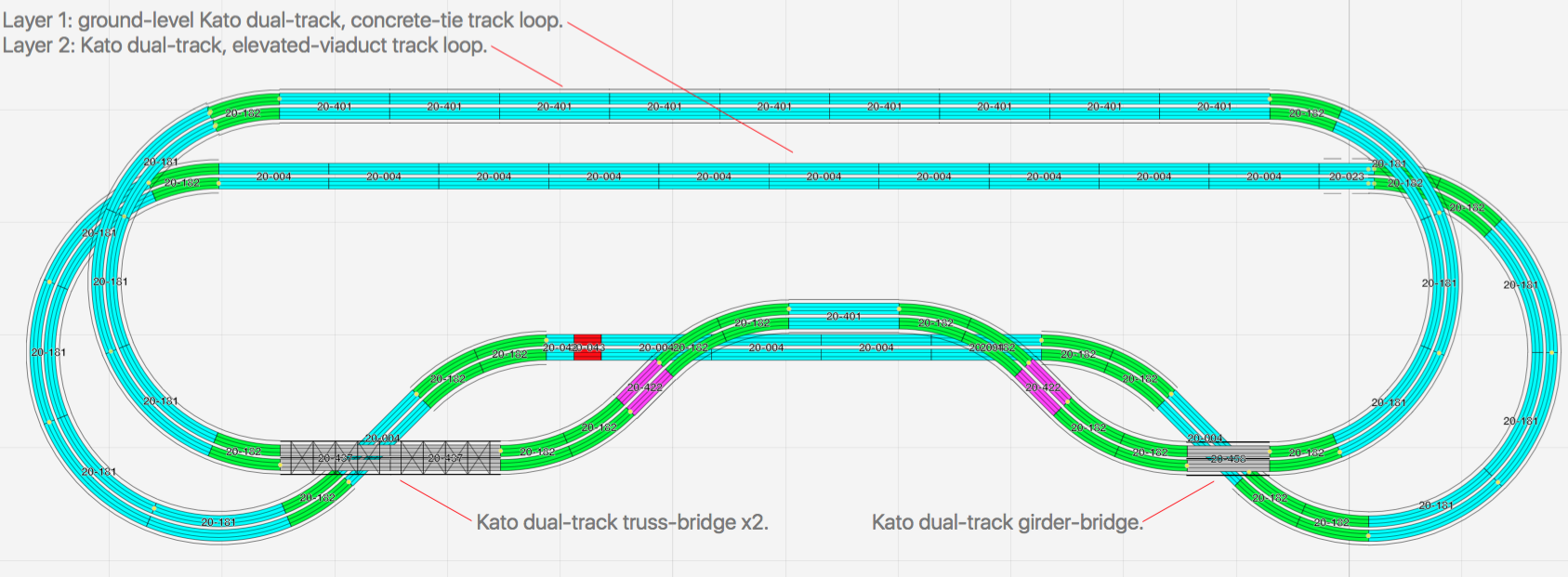

I just drew up my first N-scale track-plan, designed and output with RailModellerPro for OS X, using the application's built-in Kato Unitrack and Unitram track libraries. The upper-loop is the dual-track, raised-viaduct track; the lower-loop represents the ground-level, dual-track rail lines. The layout employs four independent loops, and will be operated using four separate controllers. Layout width is 12':



santafewillie

Well-Known Member
Looking good. Note however that you have now added a reversing section with it's minor wiring complications.
Willie


montanan

Whiskey Merchant
Looks like you're starting to make some real progress. Looking at the last plan, I didn't see a crossover from the outer loop to the inner loop.

Looking good. Note however that you have now added a reversing section with it's minor wiring complications.
Thanks! Yeah--I just got rid of that (sorry, I just deleted that post not realizing you guys had already commented on it). I ditched the reversing loop since I couldn't quite close the loop geometry with the available Kato sectional track.

. . . Looking at the last plan, I didn't see a crossover from the outer loop to the inner loop.
I would like to add a crossover, but I'm not sure how I would handle that electrically.

That's more better. View attachment 57292 Now trains can get from the inner to the outer track and back again.
Thanks! The track-plan is of course a living document, certain to be continually modified as I go along. I just found this Kato structure online which significantly conflicts with the current plan. I don't know how I'm going to integrate a structure which occupies five 9-3/4" dual-track sections, but when I saw it, I just knew I had to have it:

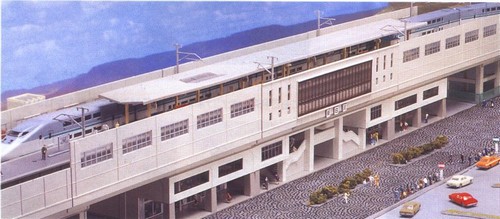

Kato N 23125 Viaduct Station Kit

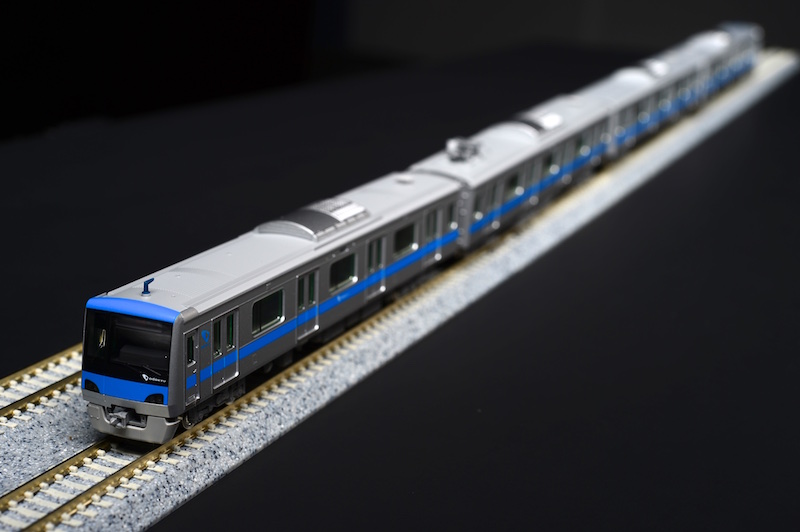

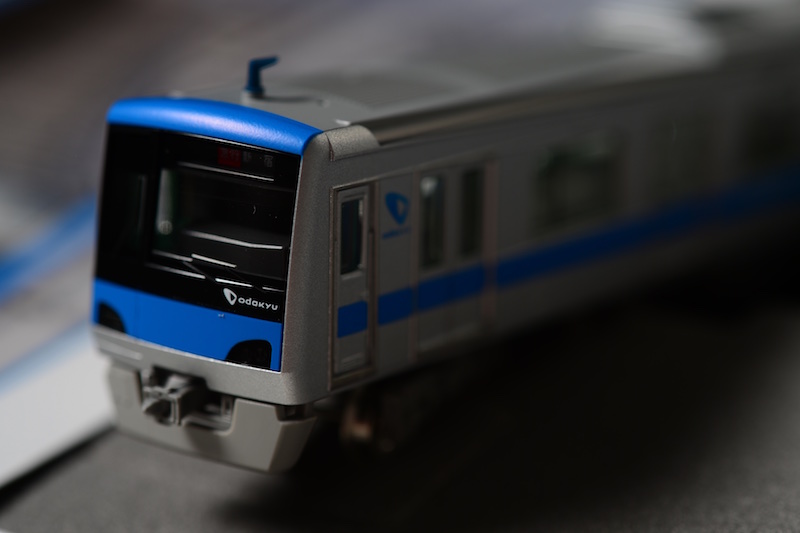

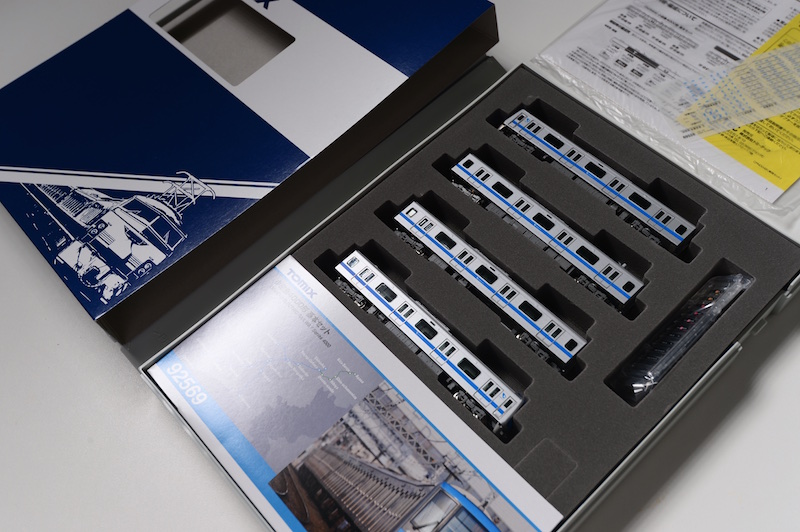

I just received my Tomix Odokyu light-rail train (below) from PlazaJapan. I chose Tomix' trains over Kato's since they more closely resemble L.A.'s Metro light-rail cars. The Tomix train has illuminated headlights, running lights, and number-boards in both the front and rear cars. Appearance is top-notch, though slow-speed running is a bit stuttery compared with Kato/Atlas engines. But, this is less of an issue since these trains will typically run at higher proto speeds of about 60-70MPH. Running these speeds at-scale looks and feels "right," and is a lot of fun to finally run trains at faster-than-freight, scale-speeds.

Running light-rail is a whole new experience, and has me eager to buy additional Tomix trains to mimic the variety of color-coded light-rail lines we have in L.A. (e.g., "Blue Line," "Gold Line," etc.), since the Tomix trains come in similarly colored side-graphics.


santafewillie

Well-Known Member
Thanks! The track-plan is of course a living document, certain to be continually modified as I go along. I just found this Kato structure online which significantly conflicts with the current plan. I don't know how I'm going to integrate a structure which occupies five 9-3/4" dual-track sections, but when I saw it, I just knew I had to have it:



Kato N 23125 Viaduct Station Kit

Build a bigger layout. That's what we all end up doing
Willie

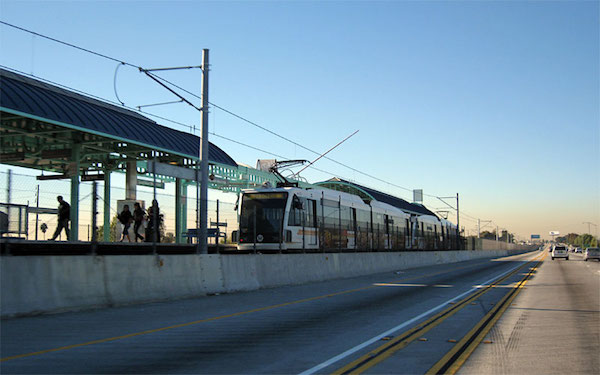

Ha! That's where this looks like it's going. Now, with all the excitement over my new light-rail train, I'm inspired to model Interstate 105 in Los Angeles (it's the freeway "Speed" was shot on before it opened). This is a modern concrete freeway with two light-rail lines built into its center divider. The 110 interstate, running through downtown Los Angeles, would be the most interesting to model, but also the most difficult, since it runs elevated, sub-terrainian, and ground-level. Here's a shot of an elevated light-rail station on the 105 freeway in Los Angeles:
