Cutting out individual numbers

ModelRailroadForums.com is a free Model Railroad Discussion Forum and photo gallery. We cover all scales and sizes of model railroads. Online since 2002, it's one of the oldest and largest model railroad forums on the web. Whether you're a master model railroader or just getting started, you'll find something of interest here.


NYSW F45

Active Member
How do you guys apply individual numbers from a decal sheet to a shell? I mean if you do a custom number not on your "conrail" decal sheet? When I get the time and money to get my 2 sd40's im going to have to get a sheet of numbers and letters that match the prototype. I just dont seem to have the luck of getting each one on 1 at a time. The previous one always ends up moving when I put the next one on.

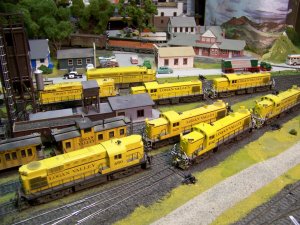

All of these locomotives started out as undecorated units. After painting them, they were all hand lettered, number by number, adn letter by letter. (Can't afford custom decals) I may apply two to three numbers or letters at a time which helps keep everything straight. When all of the decals have dried, make sure you carefully apply Solviset, ar another brand of decal setting solution, which will soften the decals allowing them to settle over any louvers or car body doors. When the decals are dry again, I then would overspray the entire body shell after any details such as grab irons or such have been painted. This will seal the decals so they won't come off. I haven't had any problem doing this. Most of these units are over 15 years old or older.


Attachments

  • 0020.jpg
    420.4 KB · Views: 311
Last edited by a moderator:
It's been a while since I've done much decaling. If I recall correctly...

My favorite decals are Champ (Champion Decal Co., now out of business (sob)). I very rarely have any trouble with them. Walthers and Herald King are my close 2nd and 3rd choices - with Microscale being a distant 4th. Why 4th? Well, I'm kinda "ham-handed"; Champ decals seemed to be on a thicker carrier layer, which made them sturdier during application. Microscale appears to be much thinner to me - and thus, more delicate. Yes, I've used Microscale; they appear to be the only "big" manufacturer left in the decal business. And their decals are very good looking. What I miss are the "generic" railroad sets - where you get a few heralds and/or logos, the railroad's name, and the "number jumble" which allowed you to get some different numbers without applying one number at a time.

As for application: I do not use a setting solution until after the decal is in its final position -- just plain old water, puddled on the model's surface, slide the decal onto the puddle, move it into position (this is where the sturdier decals are more to my liking). The next step is to use the edge of a paper towel to wick away the excess water. Then I apply the setting solution - and let it completely dry. I've had pretty good success, so it's good for me. Your mileage may vary. Oh, one other note; I very carefully apply the setting solution around the edges of the decal. After that dries, then I can go back and add a "full coat" to the entire decal, bonding it to the painted surface. If there are any air bubbles (I get them once in a while), I lightly pierce the surface of the decal, then apply more setting solution.

One caveat; I rarely do lettering over ribbed or uneven surfaces. When I do, I use pretty much the same methods, but it may take more applications of the setting solution to get the decal to settle into the detailed surfaces.

I do not use dry transfers -- I've never had any luck getting them into the right position (remember the "ham-handed" part?). And with dry transfers, you only get one chance.

As for applying numbers... using only water, I roughly position each digit with a paintbrush dipped in water. Then I nudge them into the final position using the tip of an X-Acto knife with a #11 blade. I look at the positioned numbers from several angles, and if I'm happy with their positioning, out comes the setting solution. And if they're off a bit... by using just water, I normally have enough time to correct the positioning.

One other note - I NEVER apply decals over a matte surface - always gloss surfaces. After all the decaling is done (and dried for at least a couple of days), then I apply Testor's Dullcote to get the desired matte finish. As a bonus, the Dullcote adds a protective layer over the decal. (Once again, my tendency to be "ham-handed" has taught me this lesson.)

Sorry for being rather long-winded...

Regards,
Tom Stockton

If anyone is looking for a specific decal let me know. I have a lot of decals: Champ, Microscale, Walthers.

I try to just change the last number if it's a 4-digit loco number. On freight cars that have very long numbers I change just the last pair of numbers. Cuts the problem down a bit.

On the locos I,ve renumbered, I start with the middle two numbers on the board first. That way I make sure I get them centred, once they are dry, I do the end numbers.
Ron
