Building a track helix

ModelRailroadForums.com is a free Model Railroad Discussion Forum and photo gallery. We cover all scales and sizes of model railroads. Whether you're a master model railroader or just getting started, you'll find something of interest here.


Selector

Well-Known Member
Instead of hexagonal, mine just used arcs of plywood about seven inches across. I had a double main, so it needed to be that wide. To get height, AND separation between ramps, I simply used small blocks of 1X2 for risers or pylons.


MikeGTW

Signalman, ESQ

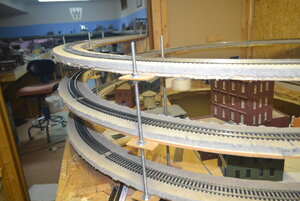

I built two of them but like Selector mine was arc cut from 1/4 in osb then 1/2 in homasote glued to it used threaded rods for the spacing Both of mine are single track The small piece of plywood holding up the helix is just setting there the track just floats on it Been there for years never any problems


Attachments

santafewillie

Same Ol' Buzzard
I didn't bother with the translation, but I have seen helix's built with this method. Nothing wrong with them, work just as well as the arc construction. Their real advantage is that they make much more efficient use of the plywood or other material used.


Rico

BN Modeller
Yes actually I made a couple exactly like this!
As Willie mentioned it’s a very efficient way to cut plywood.
