Under Layout Comfort Crawler Photo Series

[bob]

Larry has posted some photos of an under layout "crawler" that he's built. Kind of like the ones that mechanics use when working on cars, but it's a bit higher so he can easily reach the items he's working on. Due to the way the software works, the album shows as mine, since I created it, but the images, design and description are all by Larry.

http://www.modelrailroadforums.com/forum/index.php?media/albums/under-layout-comfort-crawler.3/



[Larry]

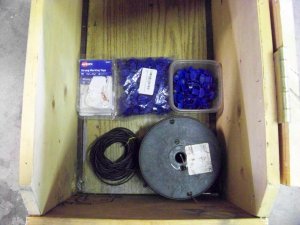

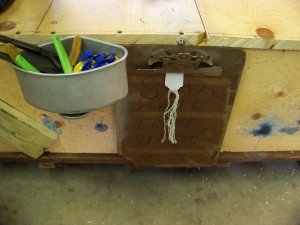

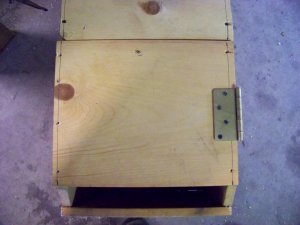

Today I had to make 1 change to the Crawler. had to remove the Foot Rests because they hit the table legs all the time. I also added a hinge to the board at the end where I lay my feet & now I've got a place to store wire, wire tags & connectors, etc. I also added a screw to the side that the parts cup is on to hang a clipboard. The next thing to add is a small board right u8nder my Butt to keep me from sliding down off of the Headboard Cushion. Next will be some kind of Brake to keep it from moving when I'm drilling underneath.



[fcwilt]

Hi,

I made my creeper from a unit off of Amazon. I removed the casters and added some wood to get the desired height and installed new casters.

The "tool holder" is a serving tray mounted on a adjustable video monitor mount allowing it to be swung to a good position and adjusted in height if needed.



[Greg@mnrr]

I use a seat mounted on a frame with rollers that has storage under the seat. The seat was made my Craftsman as a mechanic's chair. Easy to move about the underside of the layout using my legs to propel the chair.

I also use the chair at my workbench.

Greg
