Trucker-Mike's Document Library


Trucker-Mike

Trucker-Mike

Active Member
I was not sure where to put this, but since I only work on HO scale, this was my best choice. Here I will post the instruction manuals I have in my collection. They are a big help to me, but you guys that have been doing this for a long time probably have them or don't need them. I hope they will help the novice like myself. Please keep replies to a minimum so that it is easy to find the documents.
Cheers for now,
Trucker-Mike.

AHM Missile Launcher with Exploding Car assembly instructions. The Alco C-628 instructions above are for the locomotive from the set.

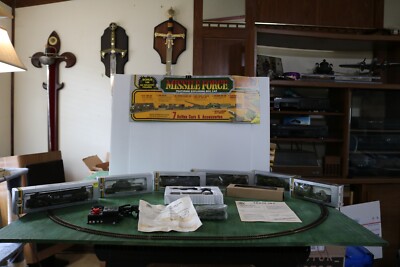

This is part of the AHM Missile Force train set I have listed on Ebay, here is a link.
www.ebay.com

AHM Missile Force HO Scale Train Set (Complete and Expanded Set, no box) | eBay

AHM Missile Force HO Scale Train Set (Complete, no box). AHM Alco C-628 eight-wheel drive locomotive, with instructions. AHM U.S. Army Gondola. AHM U.S. Army 51’ Flat Car with Two M-35 6x6 “Duce and a Half” Trucks.
www.ebay.com

Here is a video of the train set.


Attachments

  • AHM Missile Launcher with Exploding Box Car.pdf
    2.6 MB · Views: 135
Athearn Alco PA-1 instructions.
Here is a link to a video of the repair and recondition of this locomotive.



Attachments

  • Athearn-Alco PA-1.pdf
    2.1 MB · Views: 89
Bachmann EMD F-9 Diesel instructions.
I think this is going to be my next project locomotive. It has the "Bachmann Tick" real bad and I want to learn how to fix it. I will post a thread when I start the project so you can comment directly on it.

Here are the videos I have of this problem child.


(You can see the gears jumping, I think they need to be tightened up.




Attachments

  • Bachman EMD F-9 Diesel.pdf
    3.1 MB · Views: 115

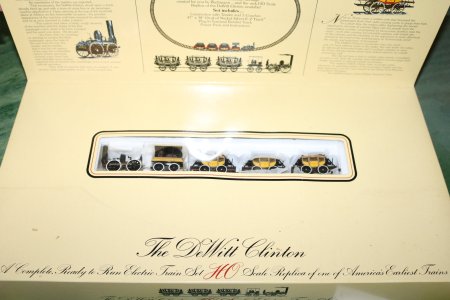

Bachmann DeWitt-Clinton and Tender instructions.

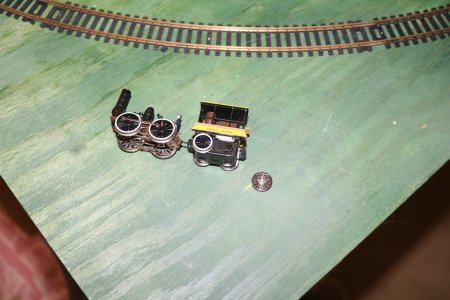

I just bought this train and when it arrived, I track tested it. In typical Bachmann tradition, the drive wheel came apart after running 3.5" around my track. My wife saw this happen, I bought it for her anyway, and her first words were "is it a Bachmann." Blimey, even she knows about Bachmann, that was a bit of a surprise. She has banned me from buying any more Bachmann locomotives.


Attachments

  • IMG_8130.JPG
    299.9 KB · Views: 66
  • IMG_8132.JPG
    442 KB · Views: 88
  • Bachmann Dewitt Clinton and Tender.pdf
    7.4 MB · Views: 84
Last edited:
Bachmann Plasticville Signal Bridge. (Well, since I have it I might as well post it.)


Attachments

  • Bachmann Plasticville Signal Bridge.pdf
    2.8 MB · Views: 92
Bachmann Bridge and Trestle Set No. 2924 (17 pieces).


Attachments

  • Bachman Bridge and Trestle Set Item No 2924.pdf
    1.6 MB · Views: 108
International Hobby Corp. (IHC) GG-1 New Version with Directional Lighting.


Attachments

  • IHC GG-1.pdf
    2.8 MB · Views: 115
Kadee No. 5 Delayed Action Magnetic Coupler instructions.


Attachments

  • Kadee No 5 Delayed Action Magnetic Coupler.pdf
    2 MB · Views: 111
