Has anyone ever used this ballast laying tool?
- Thread starter John from Indiana
- Start date
ModelRailroadForums.com is a free Model Railroad Discussion Forum and photo gallery. We cover all scales and sizes of model railroads. Online since 2002, it's one of the oldest and largest model railroad forums on the web. Whether you're a master model railroader or just getting started, you'll find something of interest here.
proses.com
There are a few YT vids from modellers who have used this.
Affiliate Disclosure: We may receive a commision from some of the links and ads shown on this website (Learn More Here)
Smudge617
Well-Known Member

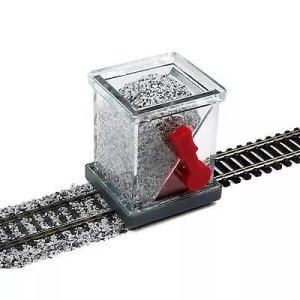

That's not a Bachmann, it's from Proses in Turkey, they also have a similar one for adhesive.
Ballast Spreaders
Ballast spreaders, ballast glue applicators, fine, medium and coarse ballasts, gravels.
There are a few YT vids from modellers who have used this.
Last edited:
Mixed Freight
Well-Known Member
I've made my own ballast spreaders in the past. For instance, I used a 1/2" PVC plastic pipe coupling for N-scale. I had to carefully saw/file the rail profiles into one end, along with enough clearance so as not to knock off delicate spike head details on the tie plates for Atlas code 55 track that I was ballasting. Just set it on the rails, fill it with some ballast, and drag it along. It worked about as good as any commercial unit, as far as I was concerned.
A short length of 3/4" or 1" PVC plastic pipe or a pipe coupling would probably work alright for making one in HO gauge.
I also made a ballast spreader for GarGraves 3-rail O-gauge track out of 3/16" lauan plywood (pic's attached). I simply built a small. rectangular box (with both ends open), and then cut/filed/sanded the rail profiles in one open end of the box to fit over the rails. It also works pretty good.
Unfortunately, some hand-brushing will still be required to clean off the top of ties, no matter what scale you're ballasting. This can be minimized however by holding the ballast spreader down tight to the tie tops while you're sliding it along. And obviously, you still need to do turnouts and crossings by hand without a spreader, but this isn't too hard, in my opinion.
While I realize that not everybody may be capable of making their own ballast spreader, for the ones that can, the cost of materials can be somewhere between zilch and next-to-nothing, depending on what you may have laying around. Just takes a little bit of time to accomplish.
A short length of 3/4" or 1" PVC plastic pipe or a pipe coupling would probably work alright for making one in HO gauge.
I also made a ballast spreader for GarGraves 3-rail O-gauge track out of 3/16" lauan plywood (pic's attached). I simply built a small. rectangular box (with both ends open), and then cut/filed/sanded the rail profiles in one open end of the box to fit over the rails. It also works pretty good.
Unfortunately, some hand-brushing will still be required to clean off the top of ties, no matter what scale you're ballasting. This can be minimized however by holding the ballast spreader down tight to the tie tops while you're sliding it along. And obviously, you still need to do turnouts and crossings by hand without a spreader, but this isn't too hard, in my opinion.
While I realize that not everybody may be capable of making their own ballast spreader, for the ones that can, the cost of materials can be somewhere between zilch and next-to-nothing, depending on what you may have laying around. Just takes a little bit of time to accomplish.
Mopac Junkie
The Thread Killer
I have exact same one. Worked fine for me. No issues
