Got my E-unit back together

ModelRailroadForums.com is a free Model Railroad Discussion Forum and photo gallery. We cover all scales and sizes of model railroads. Online since 2002, it's one of the oldest and largest model railroad forums on the web. Whether you're a master model railroader or just getting started, you'll find something of interest here.


Hutch

Hutch

Well-Known Member

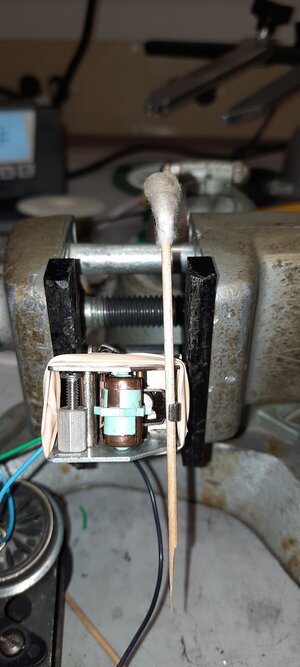

In case someone finds this useful, I found a way to do it without fumbling. Requires a rubber band and a standoff and screw. Once I have the 4 finger plate in, I wrapped the unit with a rubber band. I then inserted the jack and opened the side plates enough to get the drum in. I then moved the jack to just below where the 2 finger plate goes and opened the side plates just enough to get the 2 finger plate in and removed the jack. Voila!


Attachments

  • E-unit_Rebuild.jpg
    234.4 KB · Views: 142
Hutch said:
In case someone finds this useful, I found a way to do it without fumbling. Requires a rubber band and a standoff and screw. Once I have the 4 finger plate in, I wrapped the unit with a rubber band. I then inserted the jack and opened the side plates enough to get the drum in. I then moved the jack to just below where the 2 finger plate goes and opened the side plates just enough to get the 2 finger plate in and removed the jack. Voila!
Click to expand...
Cool, I am assuming it will be perfectly clear when/if I ever actually dissemble one of these things. We sort of need a quick ref one could just look up O-scale E unit repair in.

This thing is driving me crazy. Every time I think it's good I bring it home and it doesn't work. The motor assembly and drive wheels work perfect, forward and reverse while the shell is off. As soon as I put the shell on I have a short. Did I wire something wrong even though it works prefect without the shell?



One more thing, I got really good at disassembling the e-unit without any special tools or rubber bands. As a matter of fact, I got pretty good at disassembling the drive rods as well. Take it apart, put it together, think it's fixed, bring it home, nope, take it back to work... There's that. I know this much, the e-unit works flawlessly and can start on low settings and putt along nice and slow.

Sounds like it but I'll be darned if I could find it. I just rewired and re-soldered everything the same as it was and it worked. I wish I could have put my finger on the exact problem though.

Hutch said:
Sounds like it but I'll be darned if I could find it. I just rewired and re-soldered everything the same as it was and it worked. I wish I could have put my finger on the exact problem though.
Click to expand...
could well have been a bad solder joint, when the body was on it likely arc'd onto the chassis or motor, but it's fixed, so now you can run it. :)

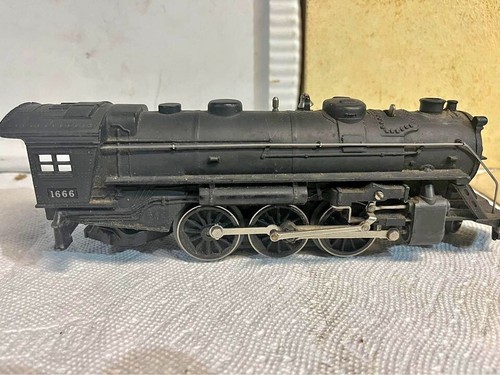

It's already been bid on so no turning back. I have been thinking of getting some On30 though. Same track just bigger equipment.
