Here is my new project. I am working on a new Roundhouse that I am 3d printing. This is going to be a big project that needs more room. I have to elevate the turntable simultaneously with the cork since this new design roundhouse incorporates it. The new roundhouse will be six or seven stalls, depending on how many I can fit. There will be two additions to the back of two stalls to handle my Big Boy and Cab forward. I got a lot done today.
The 3D printer is working hard to print the many pieces this thing will take.

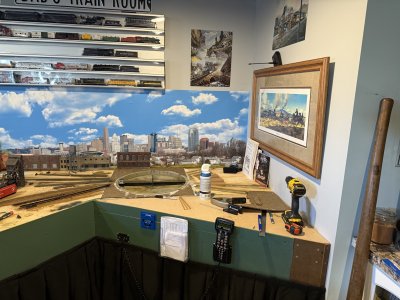

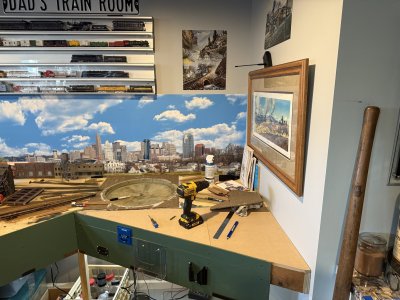

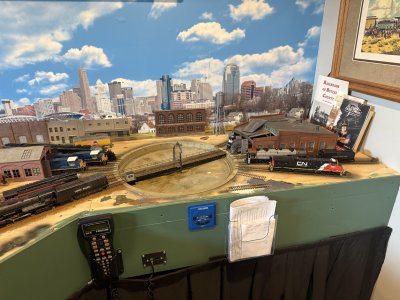

In the pictures below, you will see before and the new wedge I added today. Everything is back together as far as I can get it for now. I can't do a lot more until my printing gets done.

I never realized what a task this would be, but what else do I have to do? The print time is going to be around 70 hours. ( I'm estimating) I am taking my time on this one because I plan to add a lot more details to this.

Stay Tuned!




Attachments

  • IMG_0092.jpeg
    550.1 KB · Views: 143
  • IMG_0101.jpeg
    558.7 KB · Views: 144
  • IMG_0100.jpeg
    561.8 KB · Views: 141
Last edited:


Ericsauto said:
Here is my new project. I am working on a new Roundhouse that I am 3d printing. This is going to be a big project that needs more room. I have to elevate the turntable simultaneously with the cork since this new design roundhouse incorporates it. The new roundhouse will be six or seven stalls, depending on how many I can fit. There will be two additions to the back of two stalls to handle my Big Boy and Cab forward. I got a lot done today.
e today, and as I write this,s the 3D printer is working hard to print the many pieces this thing will take.
In the pictures below, you will see before and the new wedge I added today. Everything is back together as far as I can get it for now. I can't do a lot more until my printing gets done.

I never realized what a task this would be, but what else do I have to do? The print time is going to be around 70 hours. ( I'm estimating) I am taking my time on this one because I plan to add a lot more details to this.

Stay Tuned!


View attachment 210243View attachment 210244View attachment 210245View attachment 210246View attachment 210248View attachment 210249
Click to expand...
Are these photos in order? What are the weights for?

logandsawman said:
Are these photos in order? What are the weights for?
Click to expand...

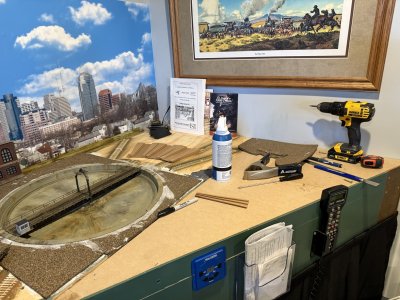

Yes, they are in order. the first is what I had to the last one that shows the extension. The weights are for pressure on the turntable. I set the turntable in place with a small film of caulking. If you ever put one of the Walthers turntables in, it is a chore to put their screw clamps in. Doing it this way makes it a better install and is easily removed if needed.



Good Morning. I'm updating you on my printing progress. This is a huge project ,as far as printing time goes. I currently have 65 hours of print time, with only three-quarters of the parts printed. The total cost so far is around $40.00. This is a fun project with a lot of learning curves in the 3D printing hobby. The nice thing is if I break something or don't like it, I just reprint it. This project will take a bit, but I am having fun. Check out some pictures of my progress. ( Notice the two extended stalls for my big boy and cab forward)


Ericsauto said:
Good Morning. I'm updating you on my printing progress. This is a huge project ,as far as printing time goes. I currently have 65 hours of print time, with only three-quarters of the parts printed. The total cost so far is around $40.00. This is a fun project with a lot of learning curves in the 3D printing hobby. The nice thing is if I break something or don't like it, I just reprint it. This project will take a bit, but I am having fun. Check out some pictures of my progress. ( Notice the two extended stalls for my big boy and cab forward)

View attachment 210931View attachment 210932View attachment 210934View attachment 210935View attachment 210936View attachment 210937View attachment 210938
Click to expand...
Impressive! Is it based on a particular roundhouse, or is it freelance?

Colorado Midland Modeler said:
Impressive! Is it based on a particular roundhouse, or is it freelance?
Click to expand...
Good question. I looked at Walthers' "Modern Roundhouse " with the extended stalls, but I like the older-style roundhouse. I would have to buy three kits from Walthers to get the seven I needed. I would have wasted two stalls on the third kit, and it still would not be what I liked.
I found this design on Thingaverse.com by a designer "KABrumble" in which you can build as many stalls as you would like.. I emailed him and he designed the extended stall for me which is now available for anyone to download.
3D printing may not be for everyone. It can be a bit trying at times when you are learning and the print time is lengthy.
I estimated about 70 hours of print time, and I was way off. I think it may be over 120 hours or more. It's okay, and it's not like you are sitting there looking at it while it prints. ( If you are, you may have issues!:D)
I'll post some more progress pictures later today or tomorrow. I am printing the roof pieces now, and they take over 30 hours just for them.


LINK to Thingaverse roundhouse. -Kabrumble Roundhouse Link

Ericsauto said:
Good question. I looked at Walthers' "Modern Roundhouse " with the extended stalls, but I like the older-style roundhouse. I would have to buy three kits from Walthers to get the seven I needed. I would have wasted two stalls on the third kit, and it still would not be what I liked.
I found this design on Thingaverse.com by a designer "KABrumble" in which you can build as many stalls as you would like.. I emailed him and he designed the extended stall for me which is now available for anyone to download.
3D printing may not be for everyone. It can be a bit trying at times when you are learning and the print time is lengthy.
I estimated about 70 hours of print time, and I was way off. I think it may be over 120 hours or more. It's okay, and it's not like you are sitting there looking at it while it prints. ( If you are, you may have issues!:D)
I'll post some more progress pictures later today or tomorrow. I am printing the roof pieces now, and they take over 30 hours just for them.


LINK to Thingaverse roundhouse. -Kabrumble Roundhouse Link
Click to expand...
Looking forward to seeing more.
