Wiring of my DC layout is coming along nicely.
I have 20 switches wired to control my turnouts and automatically disable power into turnouts that are thrown the wrong way. This lets me park things on sidings and spurs.
I added an auto-reverse on a Y track I'm using to reverse directions. Very simple to wire all this because my switch panel has DC + outputs for normal and DC - for thrown positions.
I can run a train into the stub on a Wye, flip one toggle on the turnout for that Y, and run it out without flipping anything else.
I know, I know. Someday I will have to start with DCC.
http://www.w8ji.com/Model train layout wiring.htm
Tom

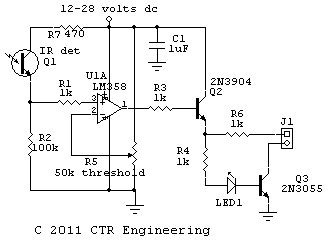

i've yet to experiment with photo-detectors personally. but it seems that it is a good idea to have slight delay. perhaps 0.5-1 second shut off delay after sensor goes inactive. should prevent from jitter on the output.
several questions.
Q1,
which photo-transistor did you use (part number)?
J1,
output for optional LED. could you explain that output chain? i understand Q2, but what is the purpose of Q3? and if we already talking about output, could op-amp drive an input of optocoupler without adding transistors?
i've yet to experiment with photo-detectors personally. but it seems that it is a good idea to have slight delay. perhaps 0.5-1 second shut off delay after sensor goes inactive. should prevent from jitter on the output.
several questions.
Q1,
which photo-transistor did you use (part number)?
ASDL-6270-D22
J1,
output for optional LED. could you explain that output chain? i understand Q2, but what is the purpose of Q3?
Q3 is an open collector output that can sink fairly high current, like several lights or relays. It's just a switch.
It would be easy to add a capacitor to delay the turn on or turn off or to hold it.
and if we already talking about output, could op-amp drive an input of optocoupler without adding transistors?
I'm sure it could, through a suitable current limiting resistance. I'm playing with driving some optically trigger triacs and solid state relays, but have been busy wiring my tracks to a relay system.
