My famous, incredible and amazing layout !

[Colbert]

I mounted a Kadee coupler a Hornby wagon (the one just behind the little switcher) because I wanted to run Hornby rolling stock and American locos together. It needed a major surgery on the Hornby wagon. I used a very old Kadee coupler.
It works very well as you can see !



[Colbert]

And it runs very well ! And yes, It's a Chessie switcher !



[shortwrench]

Now, the big controller:

Nice job on the throttles.



[Colbert]

Nice job on the throttles.

Thanks !



[Colbert]

A very special train...



[Colbert]

Another very special train !



[Colbert]

The special of the day: a dragon on board.



[Colbert]

By popular request, a new video !



[Bruette]

Did you capture the Loch Ness Monster? Or maybe Chessie, the legendary sea monster of the Chesapeake Bay?

Chessie (sea monster) - Wikipedia

en.wikipedia.org



[Smudge617]

Did you capture the Loch Ness Monster? Or maybe Chessie, the legendary sea monster of the Chesapeake Bay?

Chessie (sea monster) - Wikipedia

en.wikipedia.org

Christians' new theme song.



[Colbert]

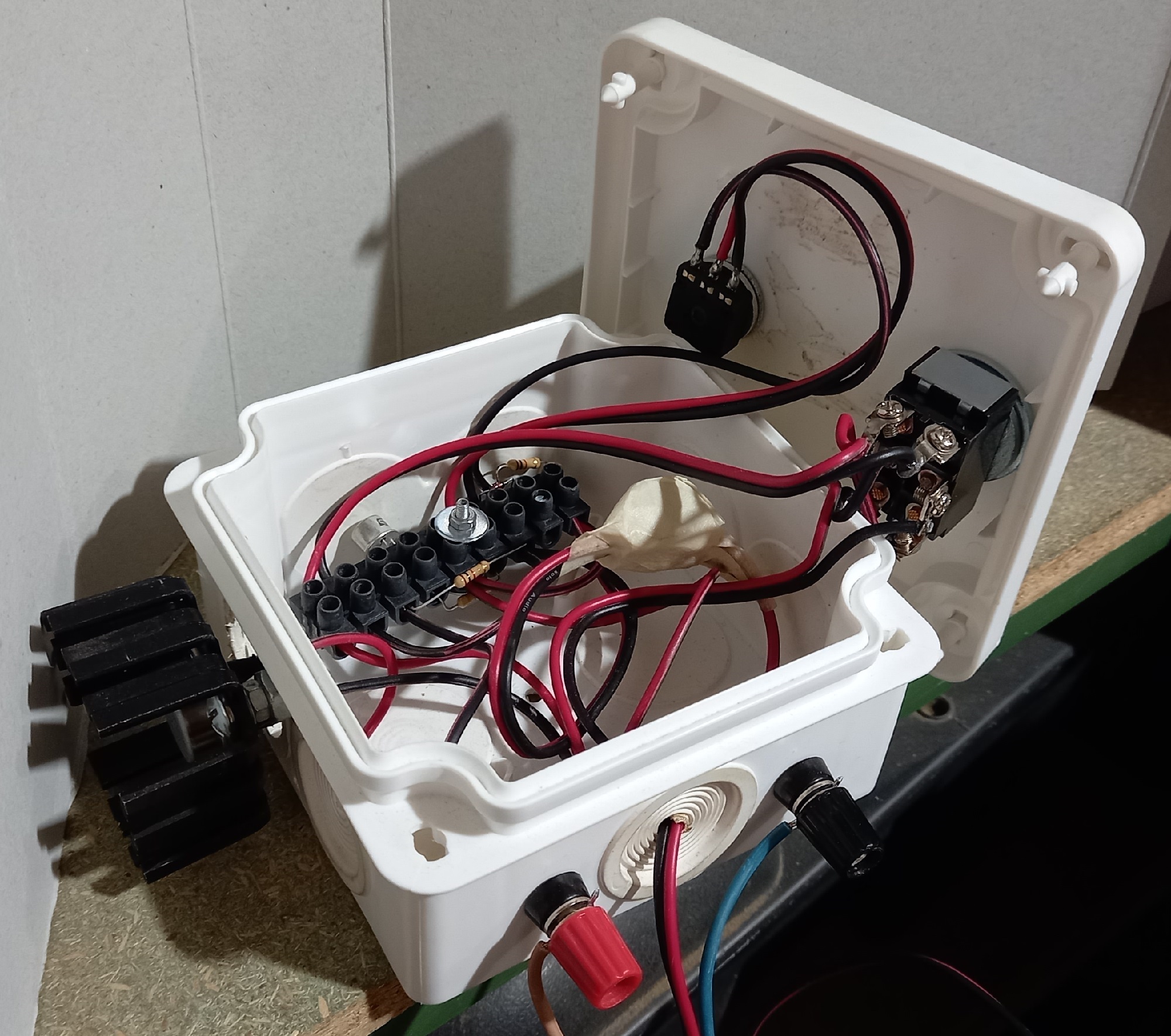

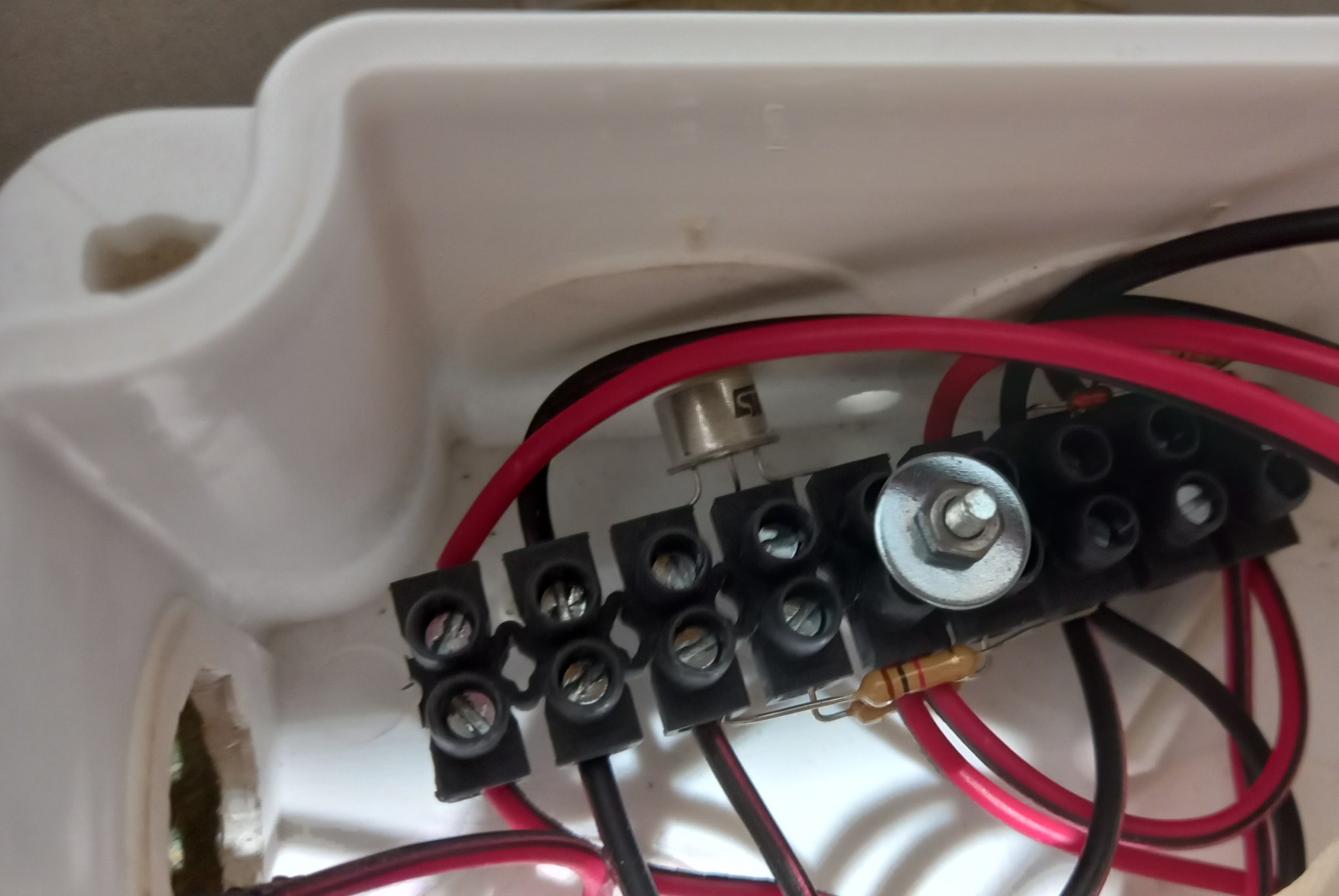

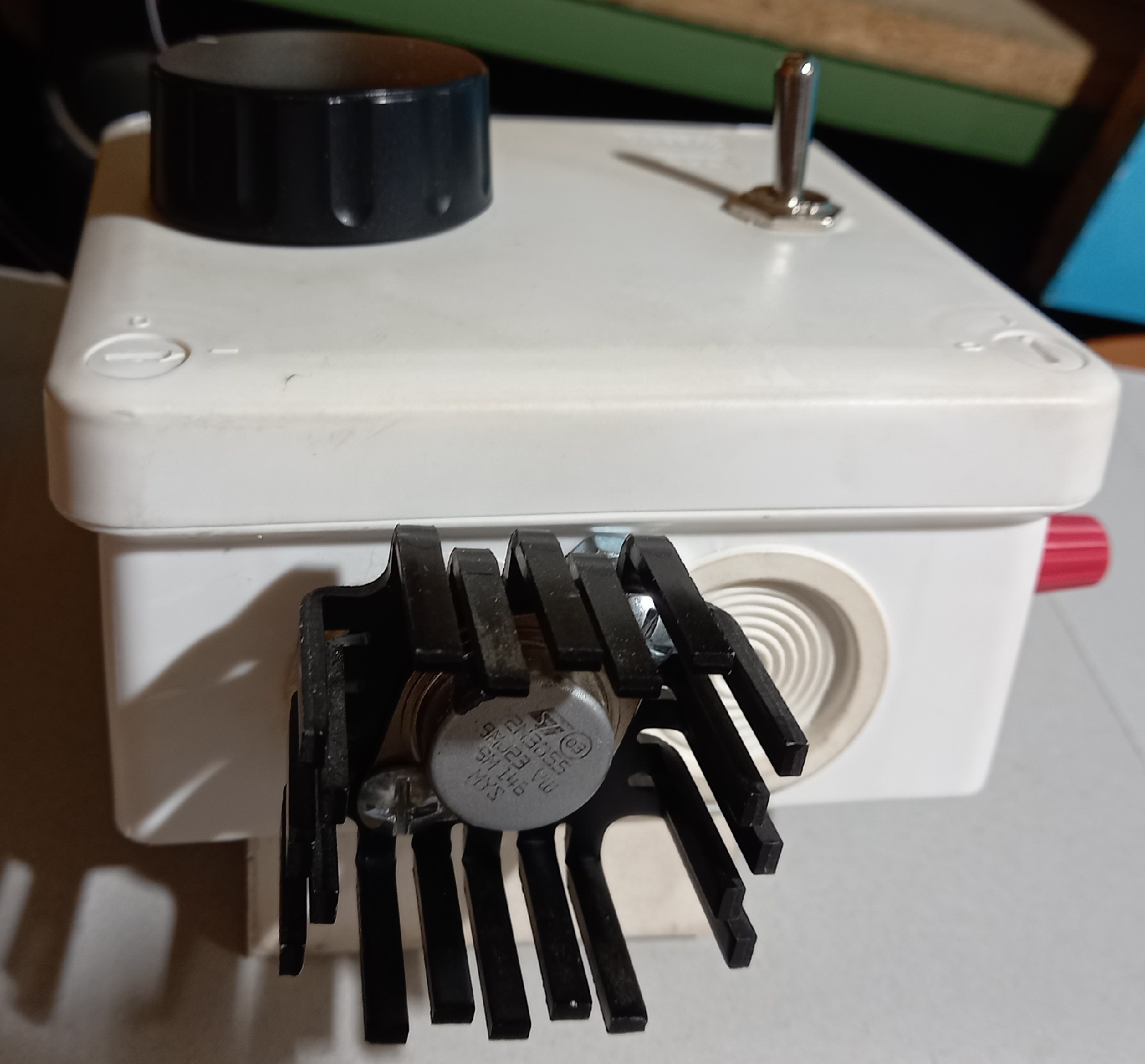

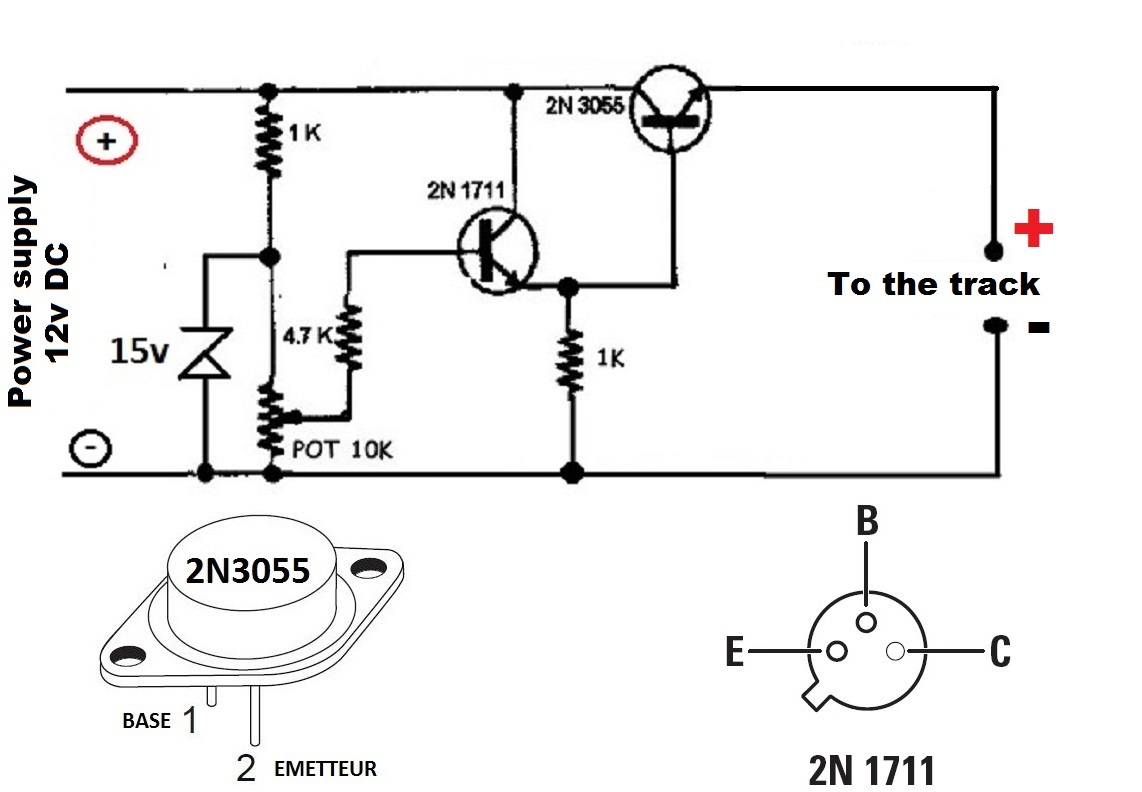

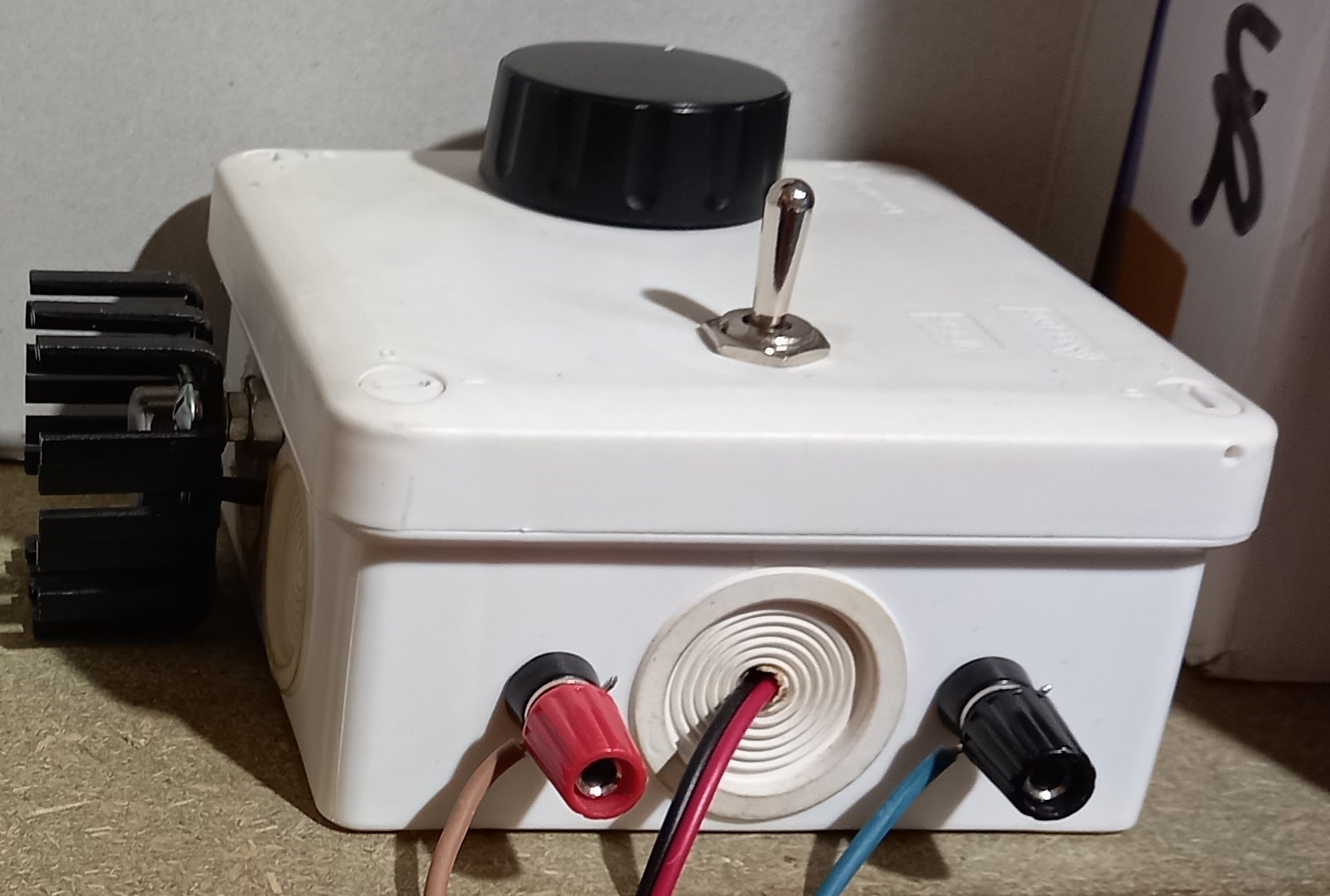

I built my first PWM controller with cheap Chinese product ($4.00 !). It works very well...so far !

Motor Speed Controller DC 6V 12V 24V 28V 3A 80W 1203BB PWM Motor Driver Reversing Switch Speed Adjustable



[migalyto]

I built my first PWM controller with some China low price stuff ($4.00 !). It works very well...so far !

Motor Speed Controller DC 6V 12V 24V 28V 3A 80W 1203BB PWM Motor Driver Reversing Switch Speed Adjustable

It has a very clean look to it, Nice tidy wiring.

Well done!



[Smudge617]

It has a very clean look to it, Nice tidy wiring.

Well done!

Yes much better than mine, but I use mine for a variety of purposes,



[Colbert]

Well done!

Thanks !



[Colbert]

I forgot to mention that a PWM controller does not work with DCC equipped locos as far as I know. First test of the PWM controller. Works fine IMHO.



[Colbert]

And now, three tracks...and three controllers !



[Colbert]

Another test with my PWM controller. A big diesel at very low speed.



[Colbert]

PWM controllers are supposed to provide excellent low speed running and constant speed over turnouts,
around curves and up and down gradients. Hope that helps...

More technical explanations:

PWM controller - New Railway Modellers Forums

www.newrailwaymodellers.co.uk



[Bruette]

PWM controllers are supposed to provide excellent low speed running and constant speed over turnouts,
around curves and up and down gradients. Hope that helps...

More technical explanations:

PWM controller - New Railway Modellers Forums

www.newrailwaymodellers.co.uk

Interesting Christian, I never knew any of that, thank you.



[Colbert]

Please note: PWM controllers DO NOT work well with everything. In some cases this can become an electrical disaster.
